Second-Row Buckle Removal/Installation

  1. Remove the seat cushion. (See SECOND-ROW SEAT DISASSEMBLY/ASSEMBLY .)
  2. Remove the bolt, and then remove the second-row buckle.

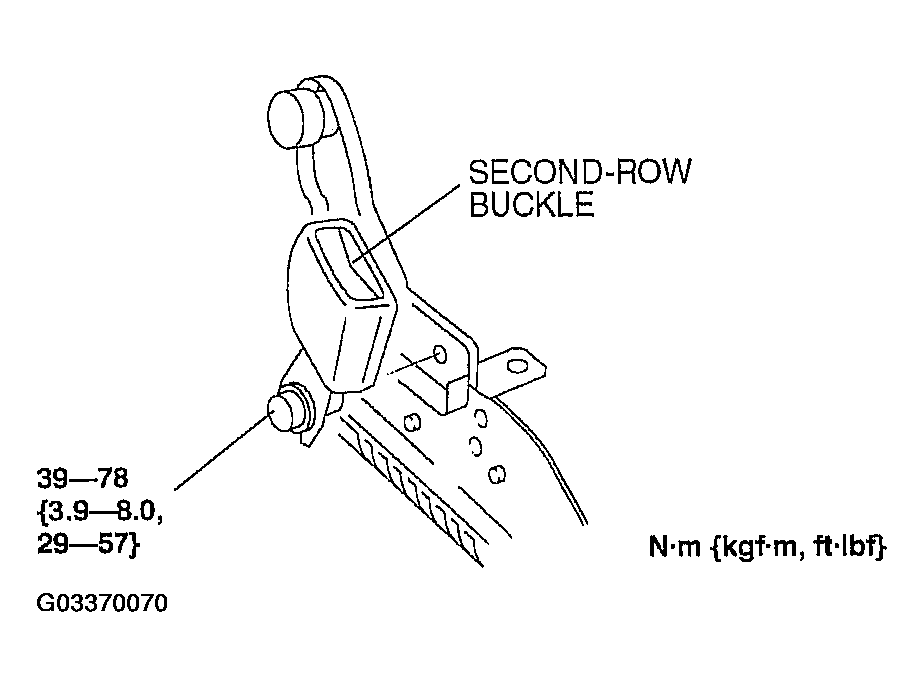

    Fig 1: Removing Bolt
    G03370070Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
