Power Steering Oil Pump Disassembly/Assembly: Notes

NOTE:

The following procedures is for replacement of the O-ring and oil seal only. Replace the pump component if other repairs are necessary.

Disassemble in the order in the figure.

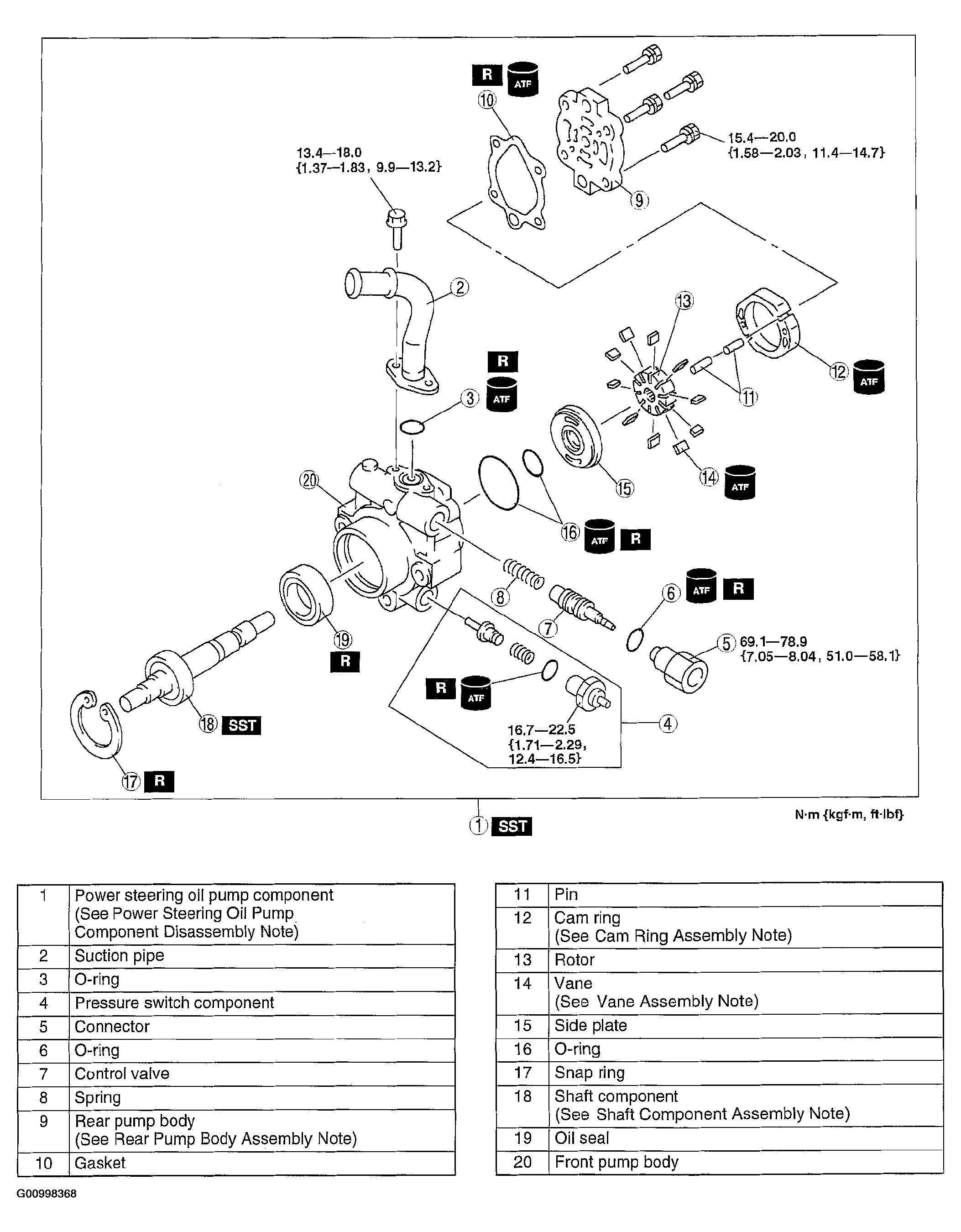

Fig 1: Disassembling/Assembling Power Steering Oil Pump
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
