Power Steering Oil Pump Removal/Installation

  1. Remove the order indicated in the figure.

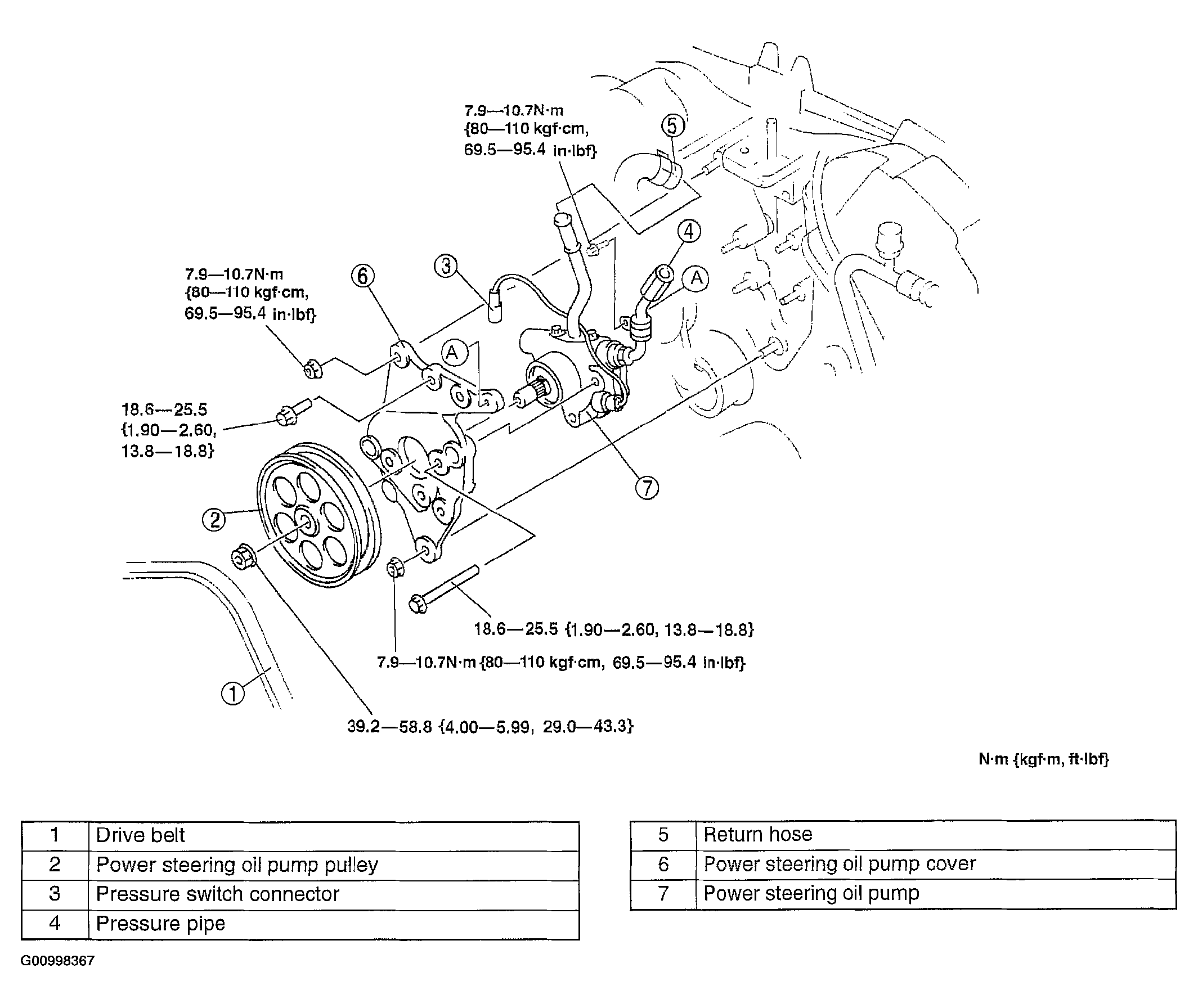

    Fig 1: Removing/Installing Power Steering Oil Pump
    G00998367Courtesy of MAZDA MOTORS CORP.
  2. Remove the No. 3 engine joint bracket. (See ENGINE REMOVAL/INSTALLATION .)
  3. Install in the reverse order of removal.
  4. Adjust the No.3 joint bracket. (See ENGINE REMOVAL/INSTALLATION .)
