Boot Assembly Note

  1. Install the boot.
  2. Install the boot band onto the large end of the boot as shown.

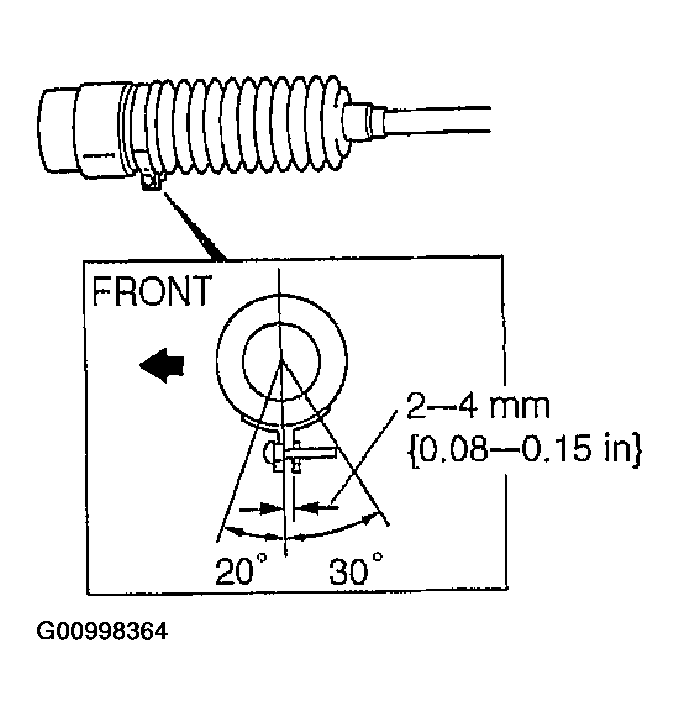

    Fig 1: Installing Boot Band Onto Large End Of Boot
    G00998364Courtesy of MAZDA MOTORS CORP.
  3. Verify that the boot is not twisted and dented while moving the rack fully forward and back.
