No. 4 Engine Mount Bracket Removal Note

  1. Remove the windshield wiper link.
  2. Remove the windshield wiper motor.
  3. Support the engine using the SSTs  .
  4. Remove the No. 4 engine mount bracket.

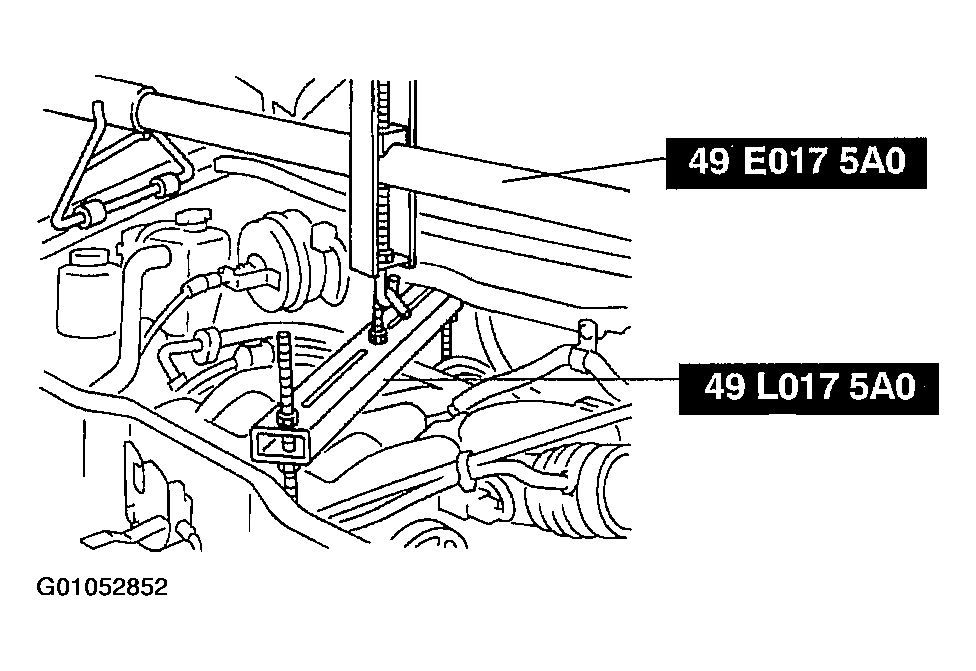

    Fig 1: Supporting Engine Using Special Tool
    G01052852Courtesy of MAZDA MOTORS CORP.
