Inspection Of Individual Part
- Remove the input/turbine speed sensor. (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION .)

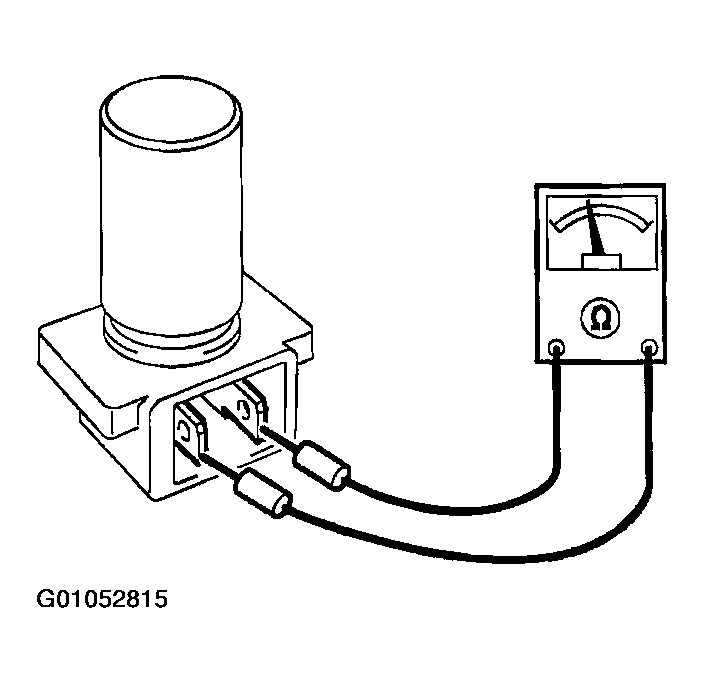

- Measure resistance between the terminals of the input/turbine speed sensor.
- If not as specified, replace the input/turbine speed sensor.
- If it is normal, replace the harness.
Resistance (ATF Temperature: 20°C {68°F})
513-627 Ohms
- Install the input/turbine sensor. (See INPUT/TURBINE SPEED SENSOR REMOVAL/INSTALLATION .)
