Inspection Of Individual Part
- Remove the intermediate sensor. (See INTERMEDIATE SENSOR REMOVAL/INSTALLATION .)

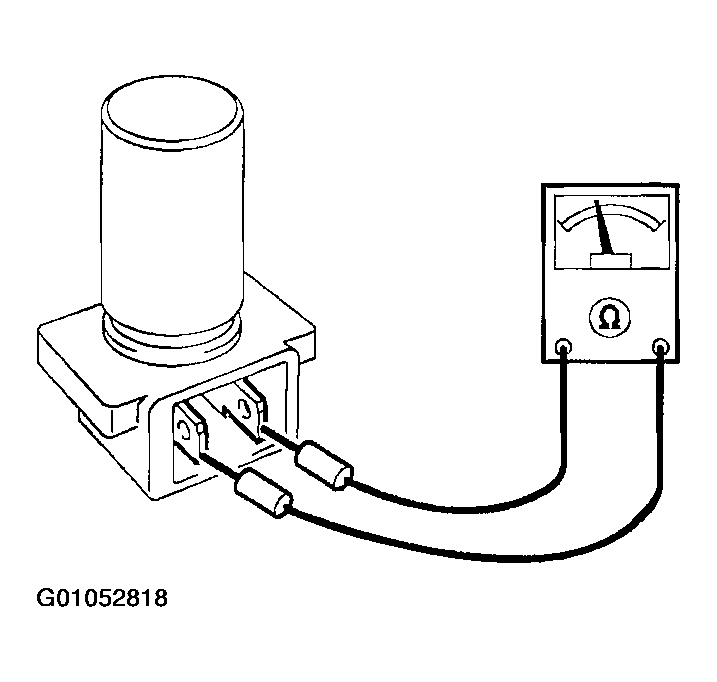

- Measure resistance between the terminals of the intermediate sped sensor.
- If not as specified, replace the intermediate sensor.
- If it is normal, replace the harness.
Resistance (ATF Temperature: 20°C {68°F})
513-627 Ohms
- Install the intermediate sensor. (See INTERMEDIATE SENSOR REMOVAL/INSTALLATION .)
