Inspection Of Continuity

Disconnect the instrument cluster connector.
Inspect continuity between terminal 1H and TCM terminal 1E.
- If not as specified, inspect the wiring harness (instrument cluster-TCM).
- If as specified, go to the next step.

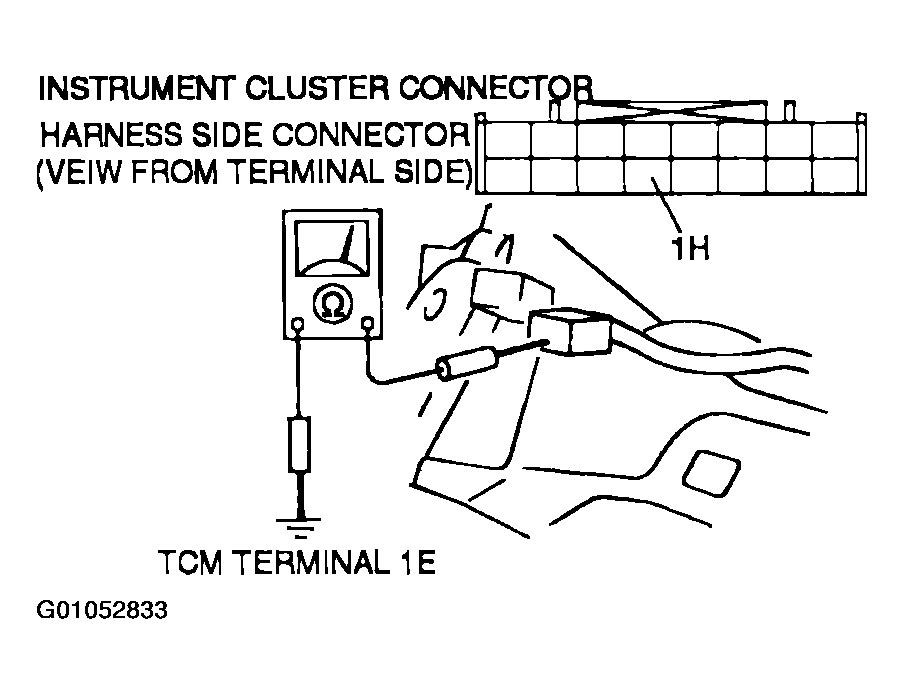

  Fig 1: Checking Continuity Between Instrument Cluster Terminal 1H & TCM Terminal 1E
  Courtesy of MAZDA MOTORS CORP.

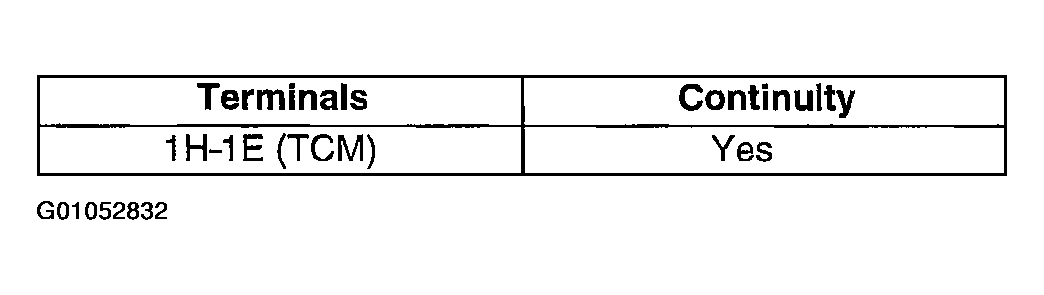

  Fig 2: Inspecting Continuity Between Terminal 1H & TCM Terminal 1E
  Courtesy of MAZDA MOTORS CORP.
Inspect continuity between terminals 1H and 3J.
- If not as specified, replace the instrument cluster or bulb.

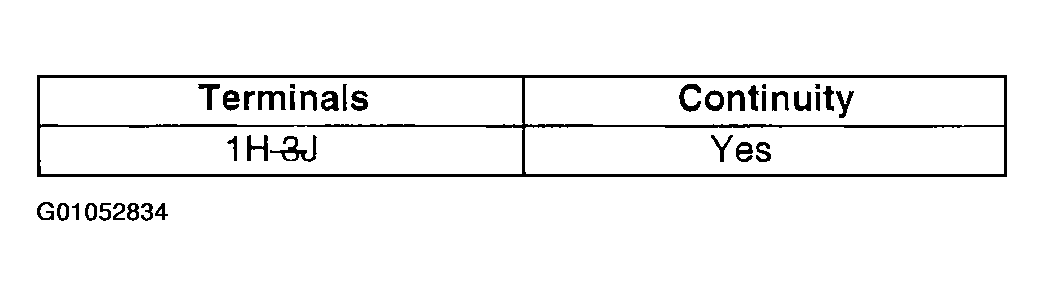

  Fig 3: Checking Continuity Between Instrument Cluster Terminals 1H & 3J
  Courtesy of MAZDA MOTORS CORP.

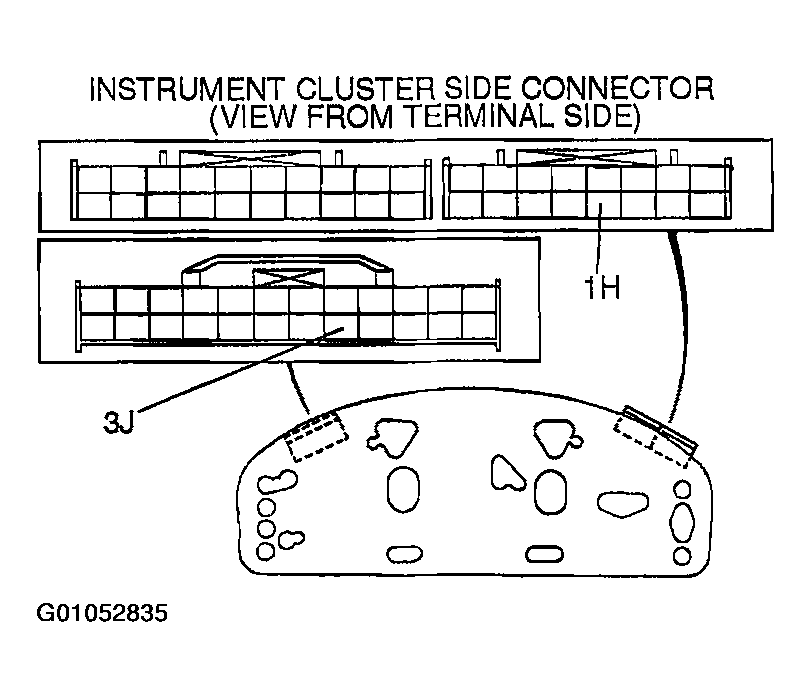

  Fig 4: Identifying Instrument Cluster Connector Terminals 1H & 3J
  Courtesy of MAZDA MOTORS CORP.
