Oil Cooler Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the figure.

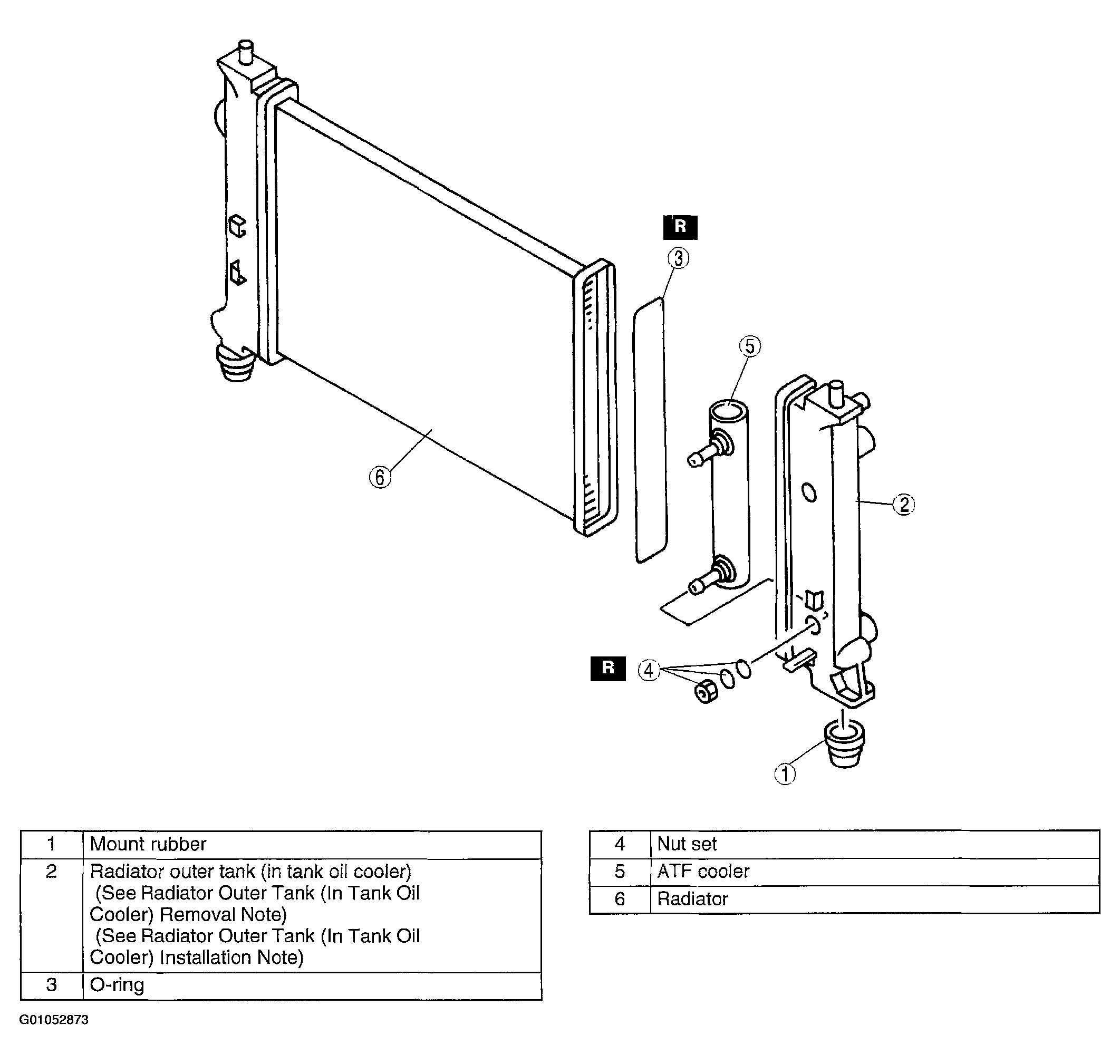

    Fig 1: Disassembling/Assembling Oil Cooler
    G01052873Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
