Typical Shift Diagram

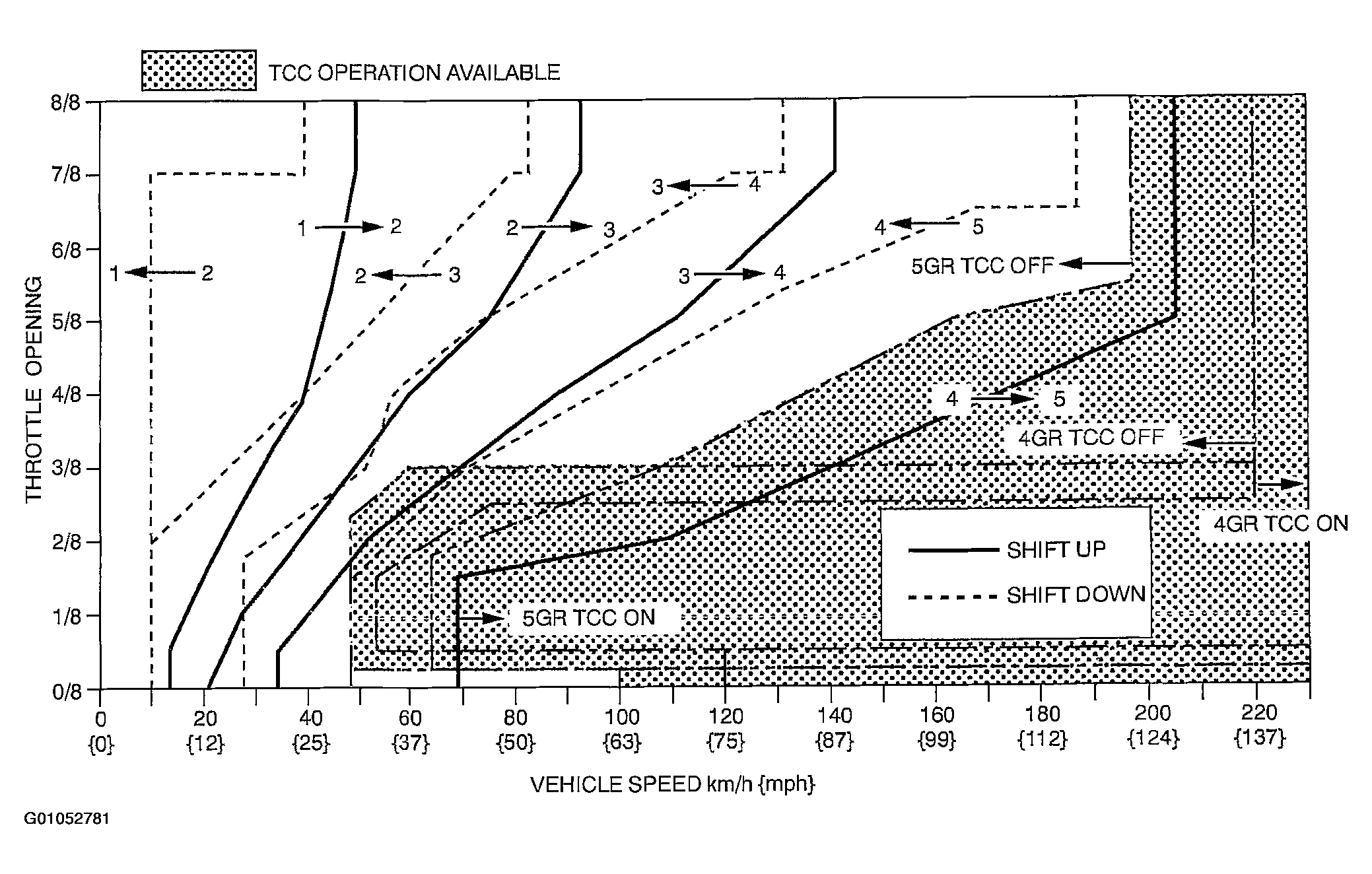

Fig 1: Typical Shift Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
