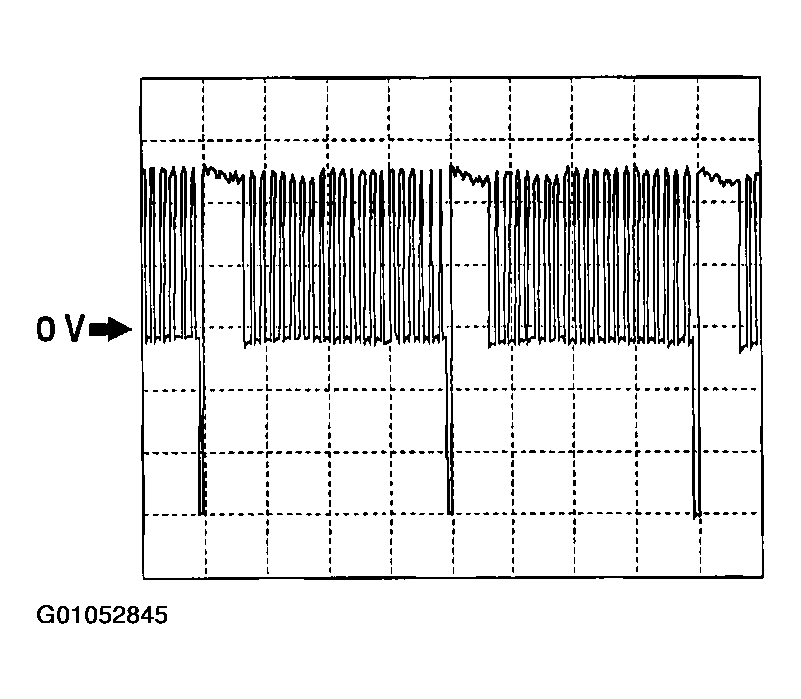

2-4 Brake Solenoid Valve Signal
- TCM terminal: 2V (+)-2P (-).
- Oscilloscope setting: 5 V/DIV (Y) 5 ms/DIV (X).
- Measuring condition: Idle after warm-up.
Courtesy of MAZDA MOTORS CORP.
