Pressure Control Solenoid Signal

TCM terminal: 2Y (+)-2P(-).
Oscilloscope setting: 5 V/DIV (Y) 5 ms/DIV (X).
Measuring condition: Idle after warm-up.

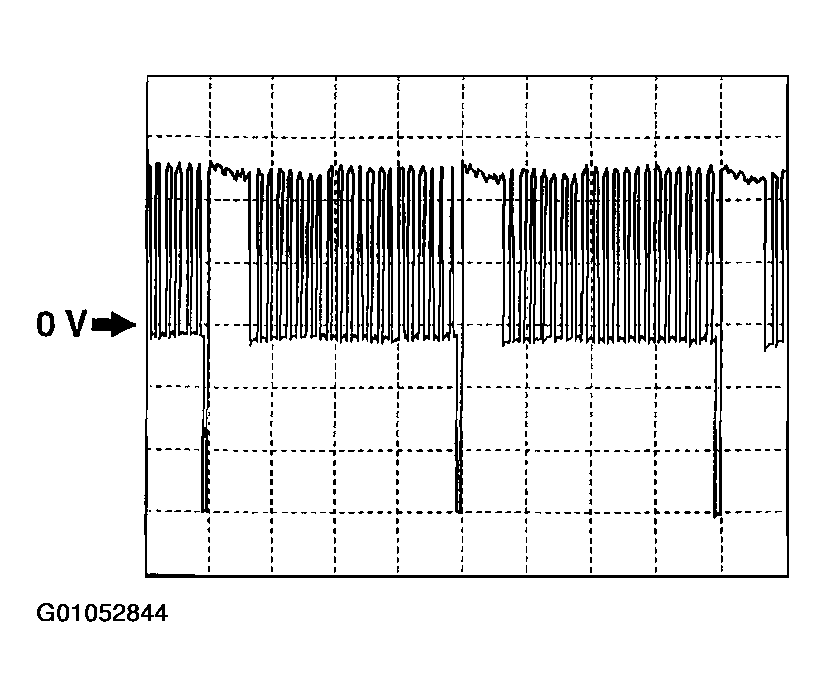

Fig 1: Inspecting Pressure Control Solenoid Signal Using Oscilloscope
Courtesy of MAZDA MOTORS CORP.
