Manual Outside Mirror Removal/Installation

  1. Remove the inner garnish.
  2. Remove the nuts, and then remove the manual outside mirror.

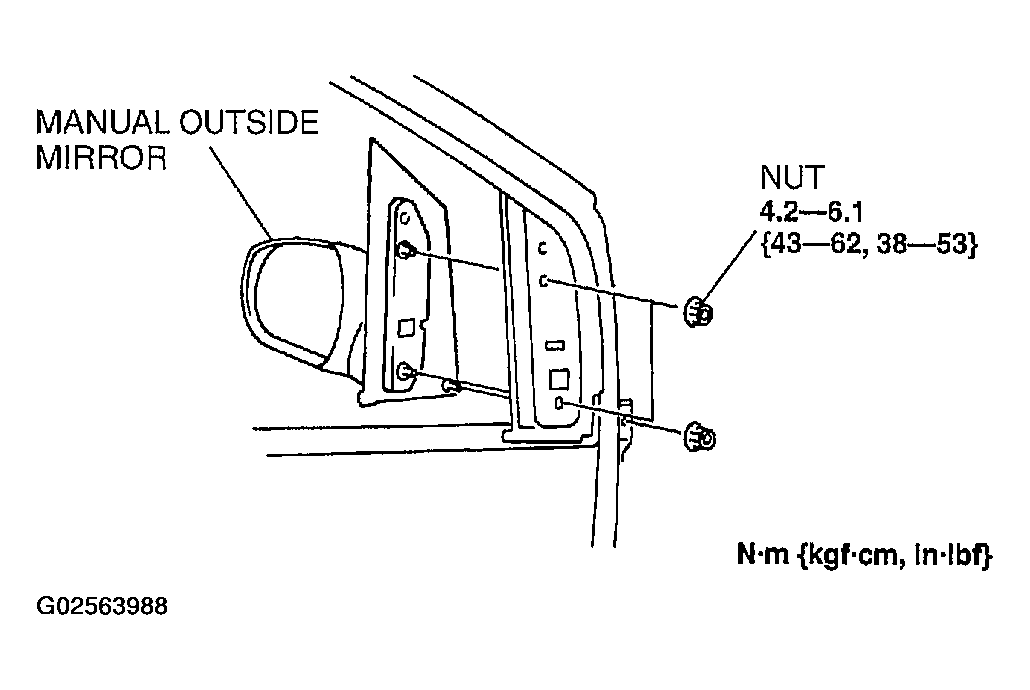

    Fig 1: Removing/Installing Manual Outside Mirror
    G02563988Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
