Plastic Fuel Hose Removal Note

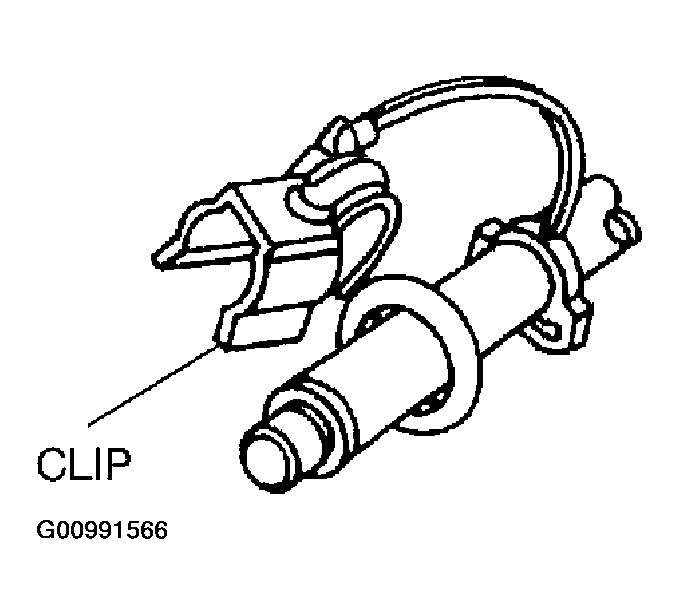

Remove the clip from the quick release connector.

Fig 1: Locating Clip
Courtesy of MAZDA MOTORS CORP.

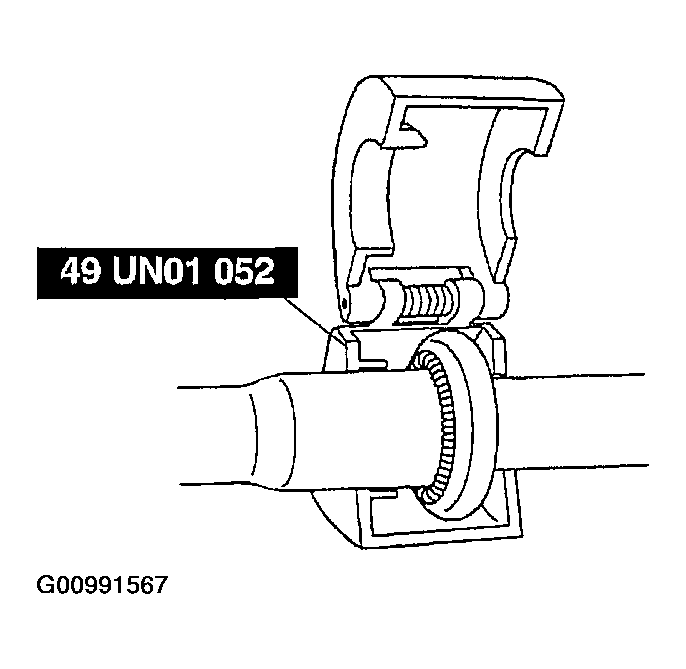

Set the SST (49 UN01052) for 1/2 inch hose onto the quick release connector.

Fig 2: Installing Special Service Tool On Quick Release Connector
Courtesy of MAZDA MOTORS CORP.

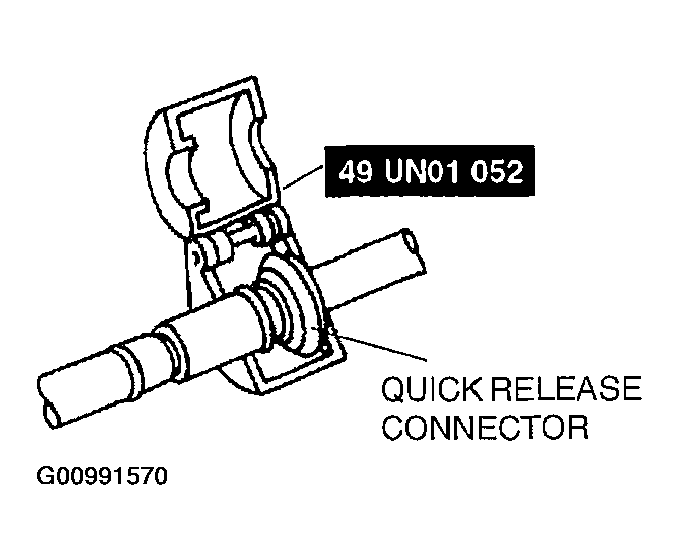

While looking through the inspection hole of the SST , insert the protruding part of the SST until it makes contact with the cage opening.

Fig 3: Inserting Special Service Tool
Courtesy of MAZDA MOTORS CORP.

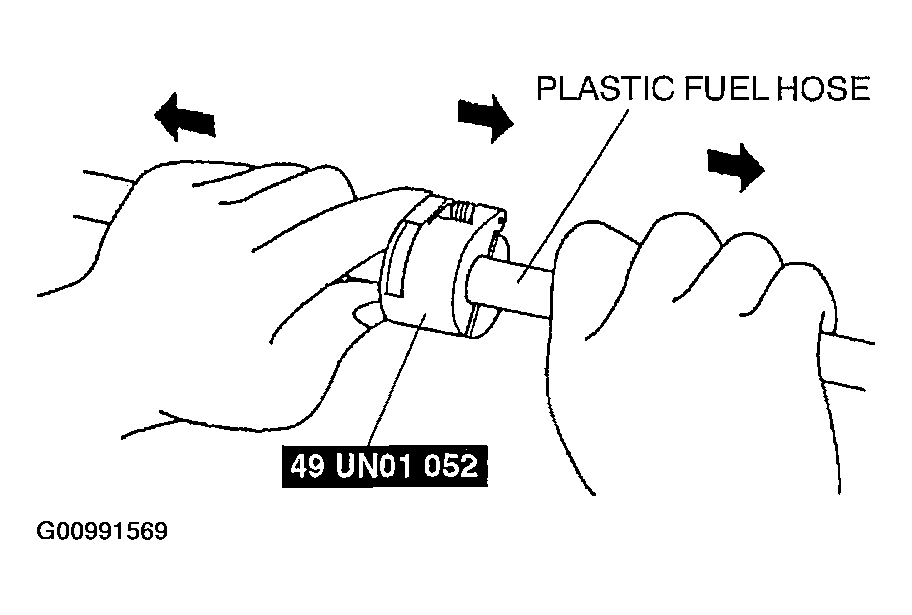

Use the SST to disconnect the plastic fuel hose from the fuel distributor by pulling the plastic fuel hose side.
NOTE:
- The plastic fuel hose can be disconnected easily from the fuel distributor by pulling the plastic fuel hose while maintaining the pressure of the protruding part of the SST.
Fig 4: Disconnecting Plastic Fuel Hose From Fuel Distributor
Courtesy of MAZDA MOTORS CORP.
Remove the SST from the disconnected quick release connector.

Fig 5: Removing Special Service Tool
Courtesy of MAZDA MOTORS CORP.

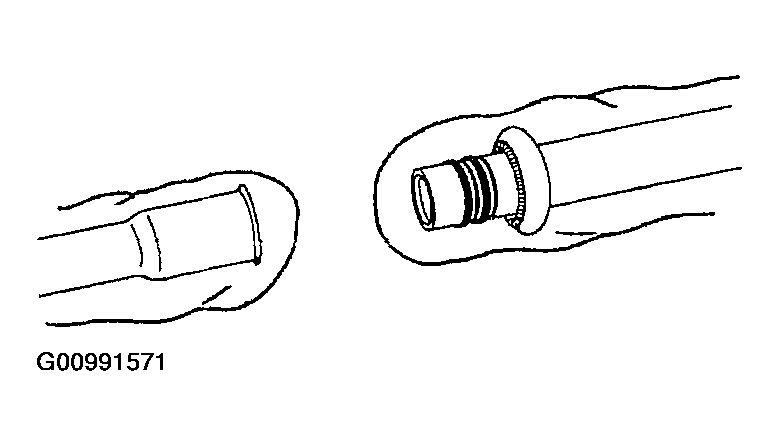

Cover the disconnected quick release connector and fuel distributor with the vinyl sheets or the like to prevent it from being scratched or contaminated with foreign material.
