Evaporative Hose Installation Note

  1. Fit evaporative hose onto the respective fittings, and install clamps as shown.

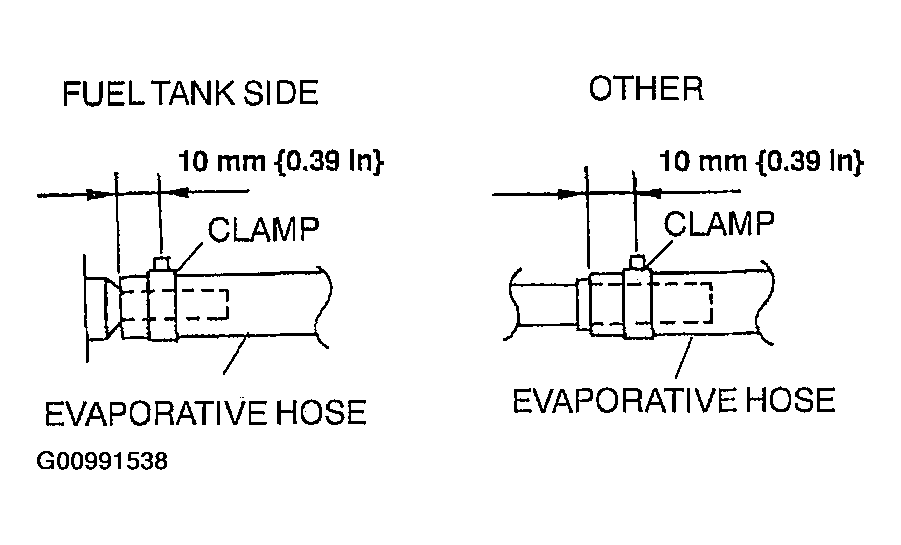

    Fig 1: Installing Clamps On Evaporative Hose
    G00991538Courtesy of MAZDA MOTORS CORP.
