HO2S signal (front, RH/LH)

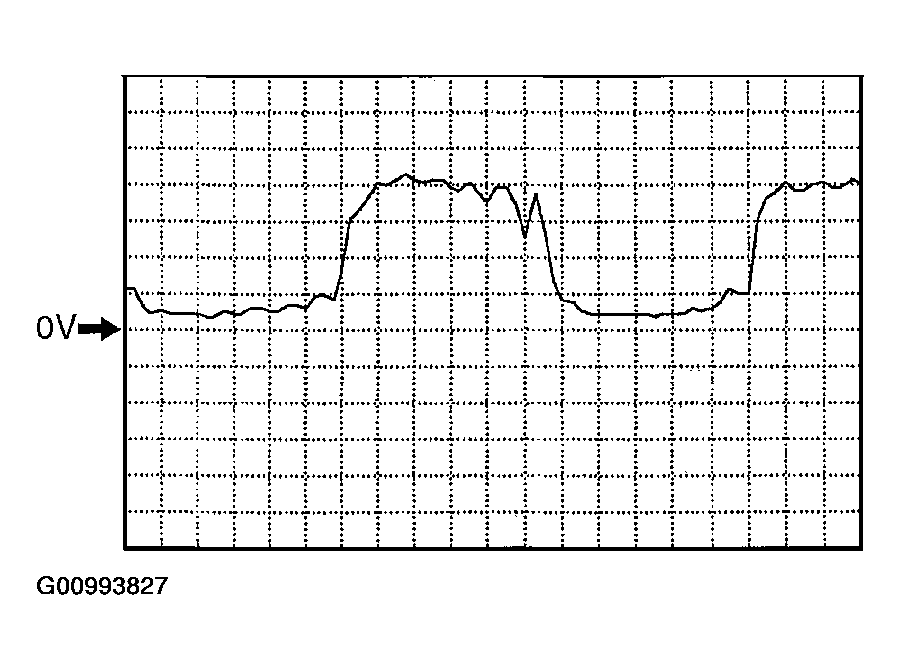

Fig 1: HO2S Signal (Front, RH/LH) Inspection By Using Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.
PCM terminal: 60, 87(+)-91(-)
Oscilloscope setting: 0.2V/DIV (Y), 200ms/DIV (X), DC range
Vehicle condition: idle after warm up
