Diagnostic Procedure

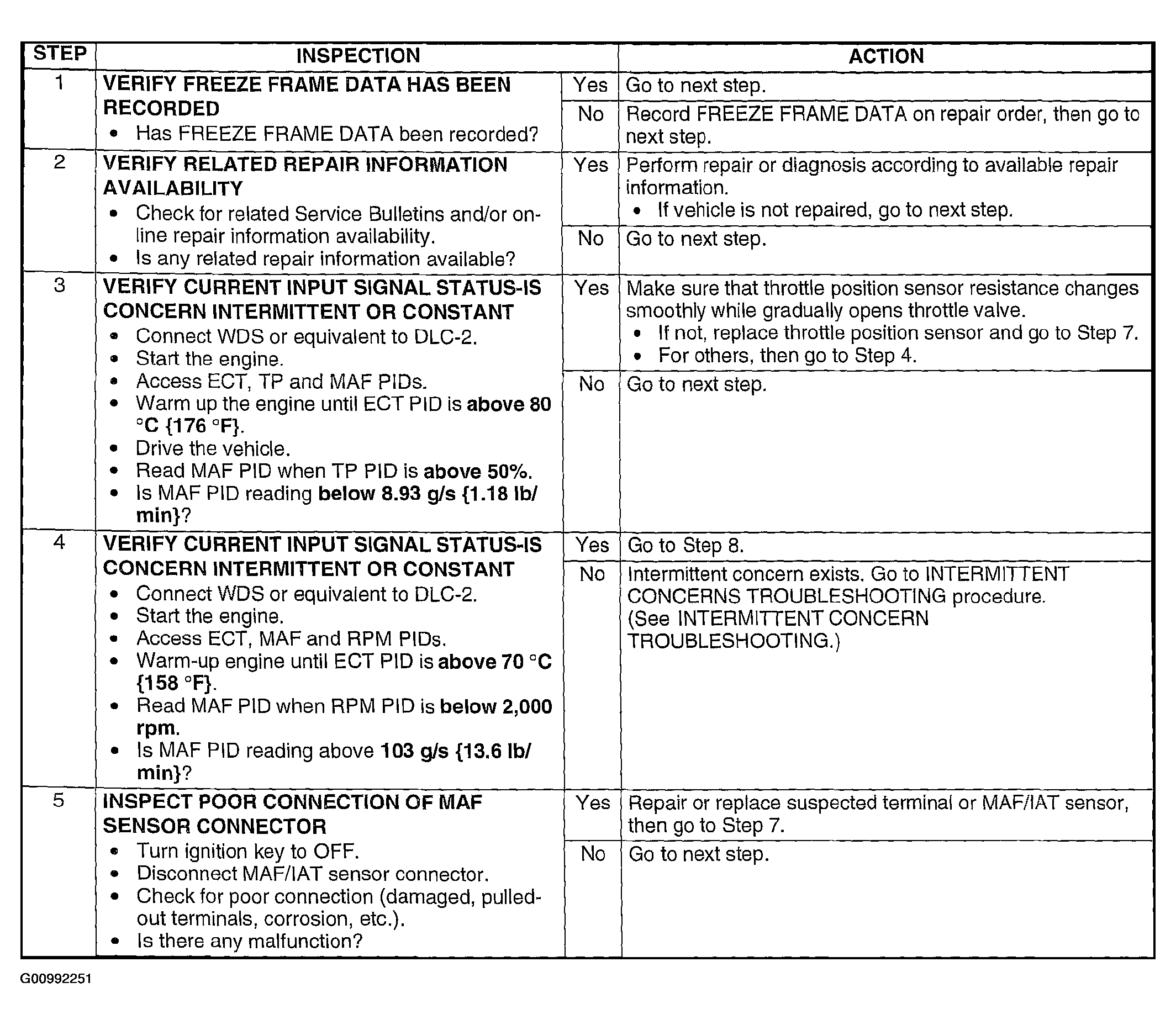

Fig 1: DTC P0101 Diagnostic Procedure Chart (Step 1-5)
Courtesy of MAZDA MOTORS CORP.

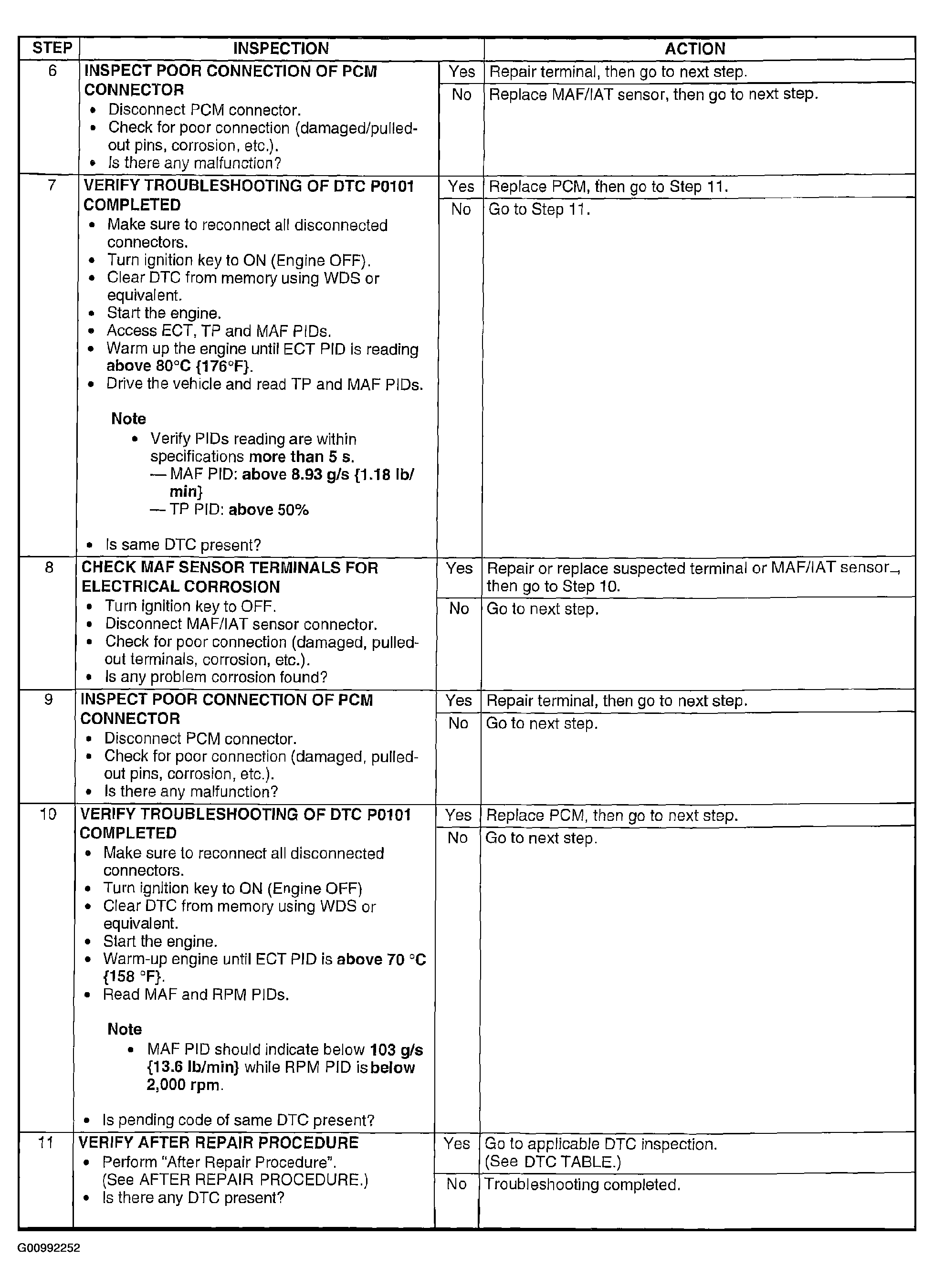

Fig 2: DTC P0101 Diagnostic Procedure Chart (Step 6-11)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
