DTC P0480: Fan Control Module Circuit Malfunction: Notes

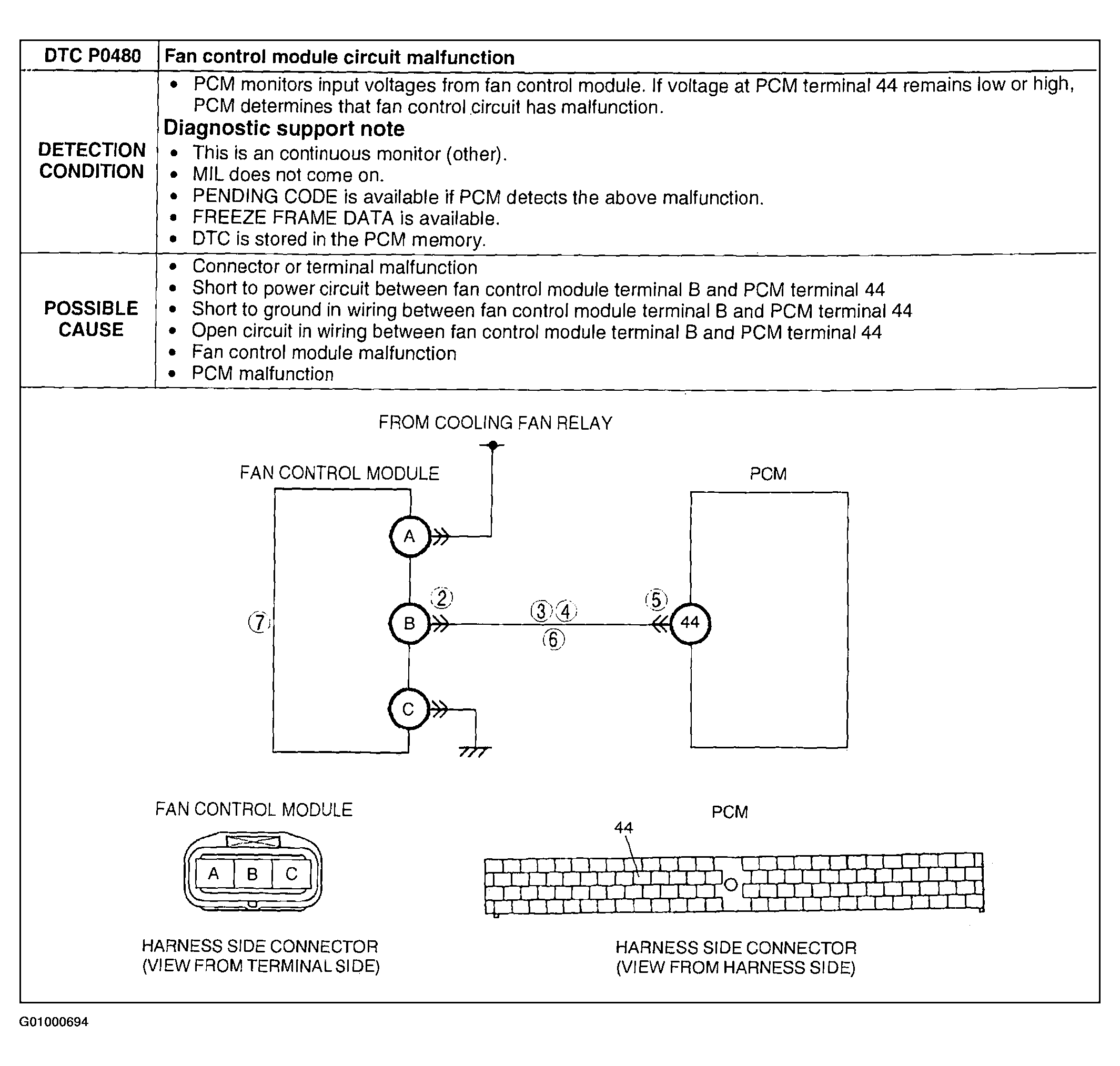

Fig 1: DTC P0480 Detection Condition & Possible Causes Chart
G01000694Courtesy of MAZDA MOTORS CORP.
