On-Vehicle Inspection

Disconnect the terminal component No. 2 connector.

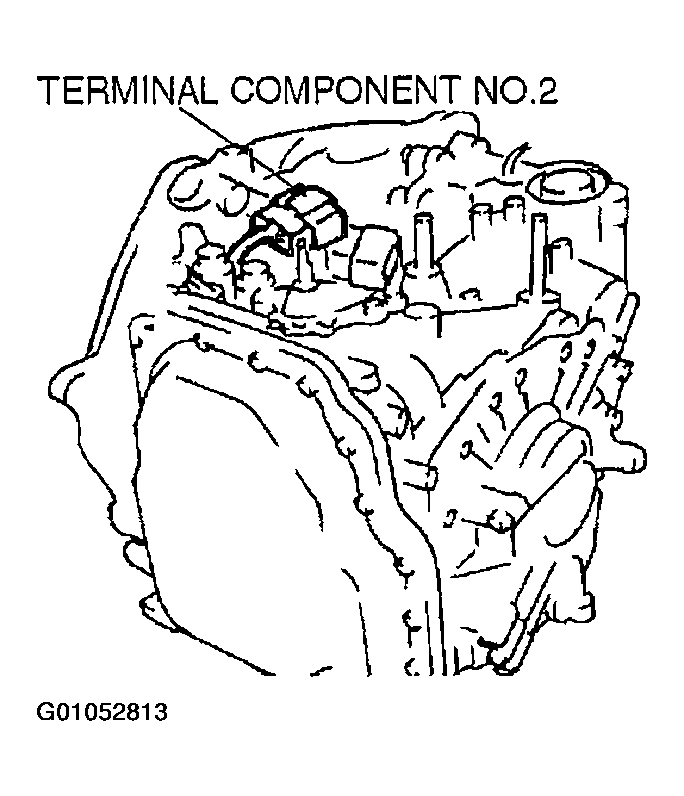

Fig 1: Locating Terminal Component No. 2 Connector
Courtesy of MAZDA MOTORS CORP.
Measure resistance between the terminals E and F.
- If not as specified, inspect the input/turbine speed sensor. (See INSPECTION OF INDIVIDUAL PART .)
  Resistance (ATF temperature: 20°C {68°F})

  513-627 Ohms

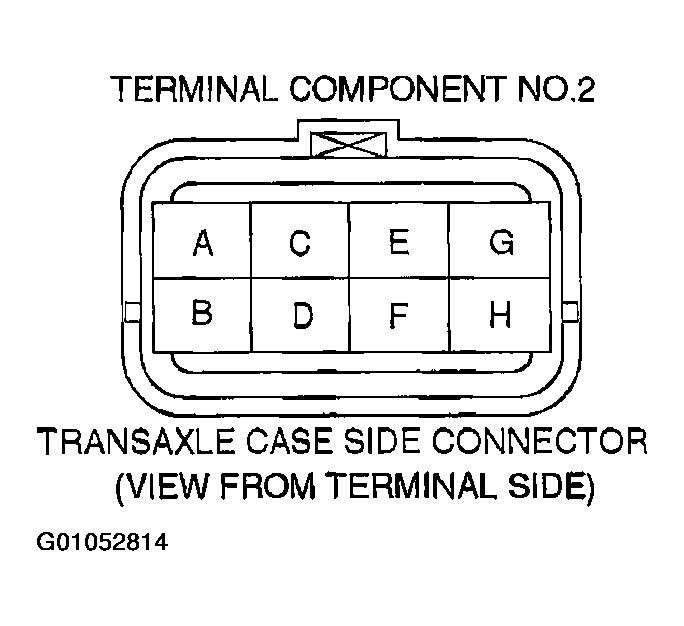

  Fig 2: Identifying Terminal Component No. 2 Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
Connect the terminal component No. 2 connector.
