Inspection Of Continuity

  1. Disconnect the O/D OFF switch connector.
  2. Inspect continuity at the O/D OFF switch.
    • If the switch is okay, inspect the wiring harness. (O/D OFF switch-TCM, O/D OFF switch-Body ground)
    • If not as specified, replace the selector lever component. (See SELECTOR LEVER REMOVAL/INSTALLATION .)

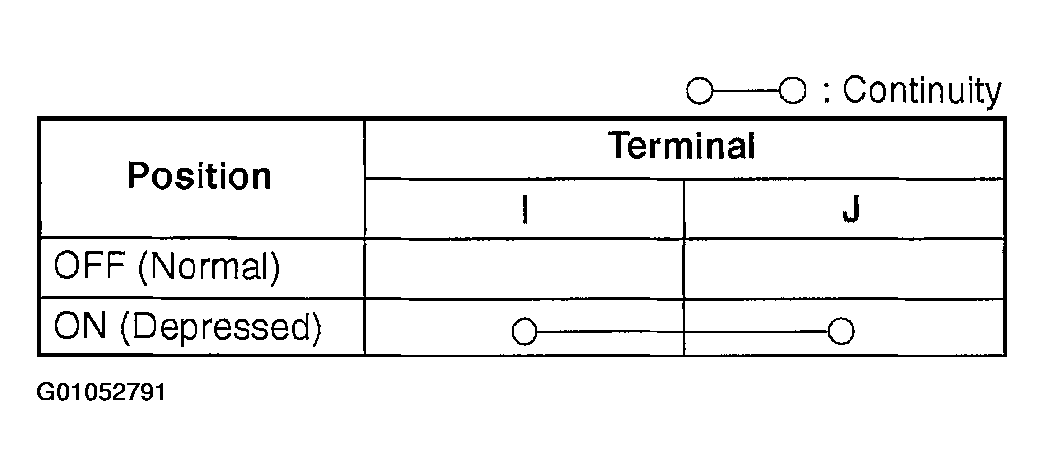

      Fig 1: O/D Off Switch Continuity Specifications
      G01052791Courtesy of MAZDA MOTORS CORP.

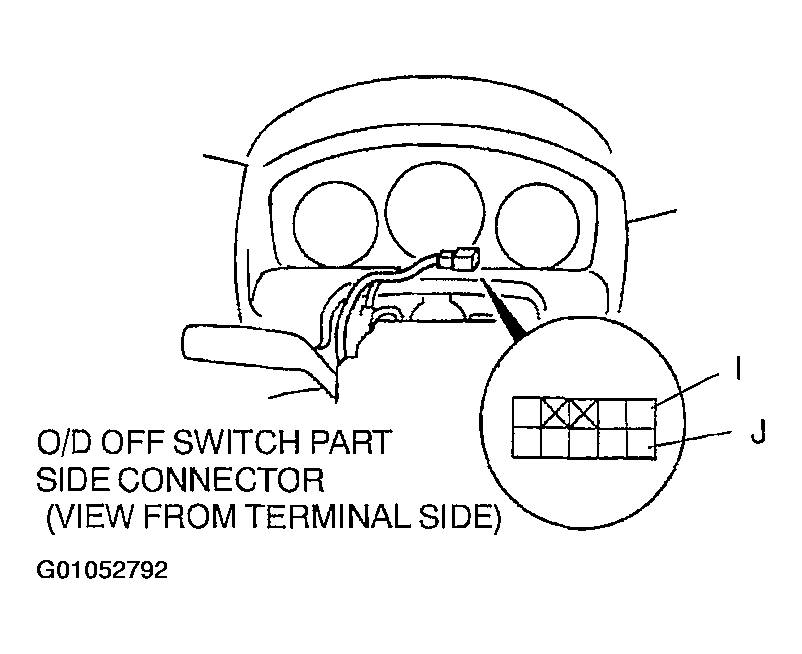

      Fig 2: Identifying O/D Off Switch Connector Terminals
      G01052792Courtesy of MAZDA MOTORS CORP.
