Fuel Hose Installation
- Replace damaged or deformed fuel hoses, fuel pipes, and hose clamps.

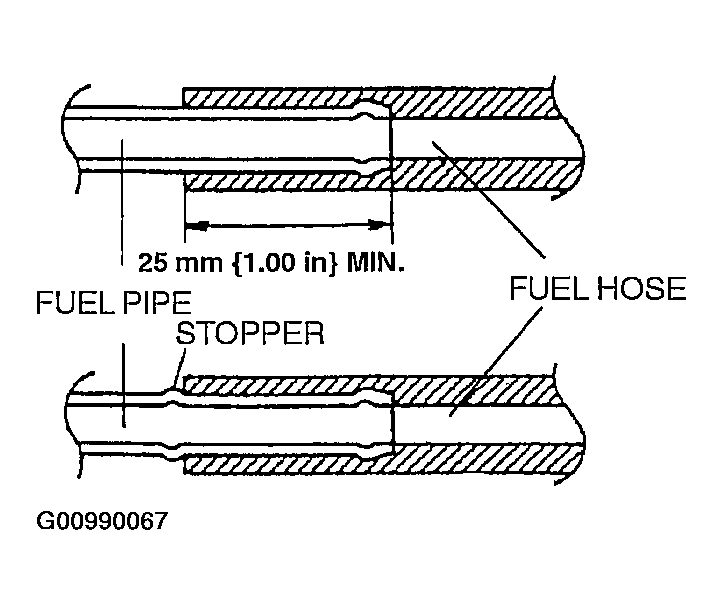

- When installing the fuel hose onto the fuel pipe, fit the hose onto the pipe over 25 mm {1.00 in}
. When the pipe has a stopper, fit the hose until it contacts the stopper.
Courtesy of MAZDA MOTORS CORP.
- Install a hose clamp over the fuel hose within the clamp installation range as shown, avoiding the original clamp position.
Courtesy of MAZDA MOTORS CORP.

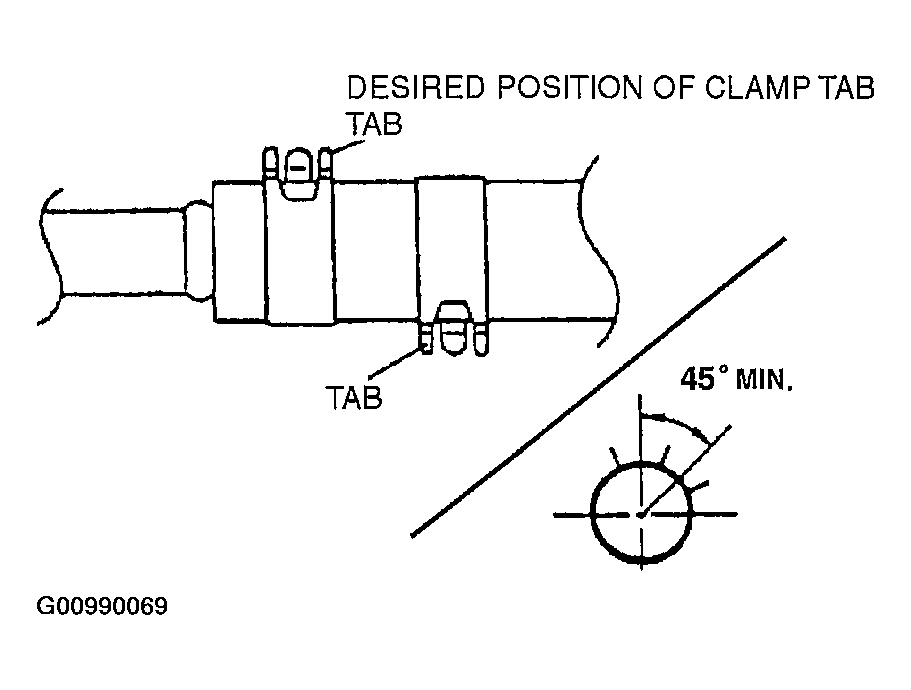

- When installing two clamps, their tabs must be positioned more than 45° (desired 180°)
apart.
Courtesy of MAZDA MOTORS CORP.
