Fuel Injector Installation Note

  1. Use new fuel injector O-rings.
  2. Apply a small amount of engine oil to the O-rings and install them into the fuel distributor.
  3. Verify that the O-rings and the fuel injector sealing surfaces are free of foreign material.
  4. Clean with gasoline if necessary.
  5. Install the fuel injectors in the fuel distributor with a light twisting motion so that the O-rings will not be folded.

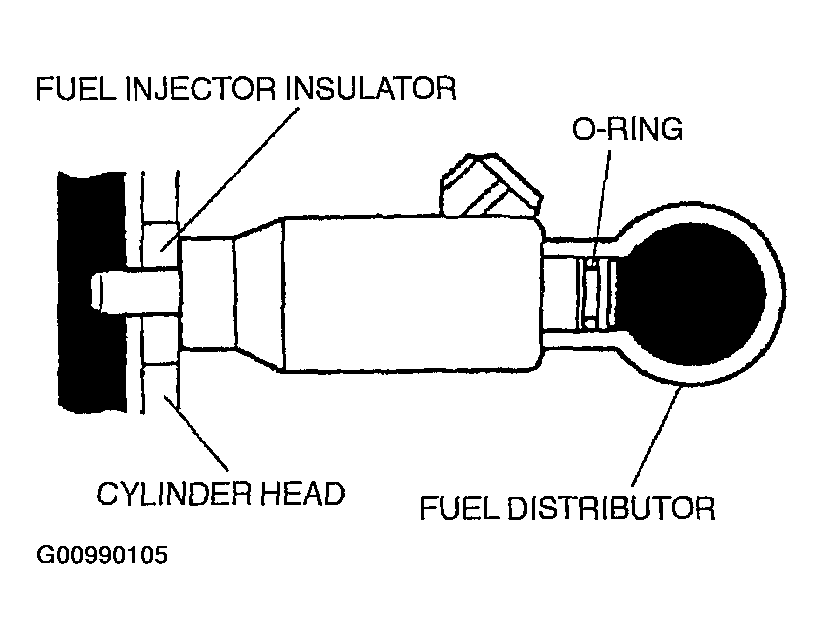

    Fig 1: Locating Fuel Injector
    G00990105Courtesy of MAZDA MOTORS CORP.
