Fuel Hose Assembly Note

Do not apply excessive side force when pushing the fuel hose onto the FP nipple.

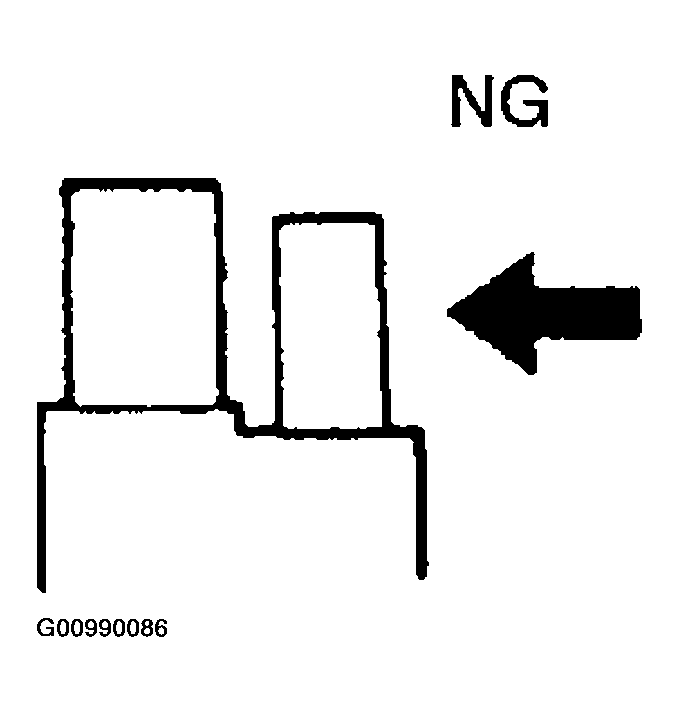

Fig 1: Identifying FP Nipple
Courtesy of MAZDA MOTORS CORP.
Install the clamps as shown.

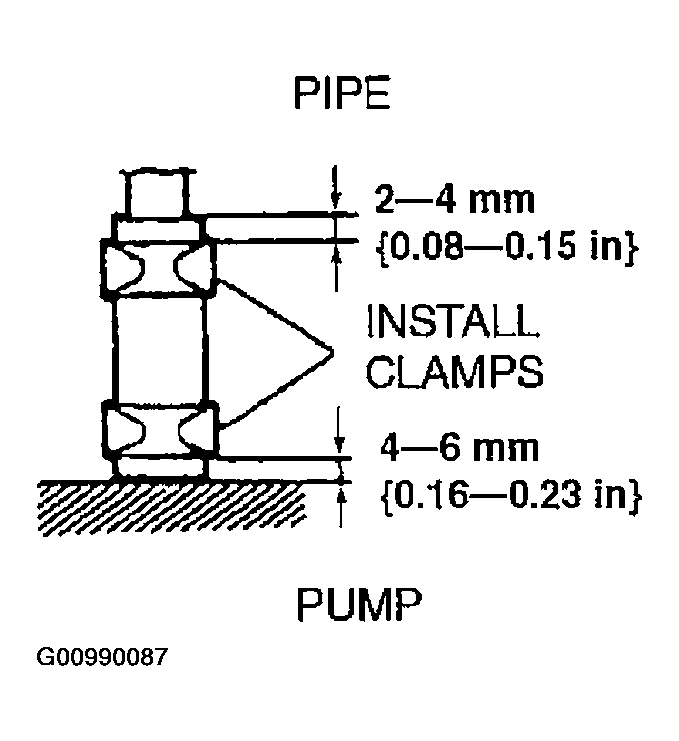

Fig 2: Installing Clamps According To Specification
Courtesy of MAZDA MOTORS CORP.
