Inspection Of Continuity

NOTE:

Verify that the clutch switch is installed properly. See CLUTCH PEDAL REMOVAL/INSTALLATION .
Disconnect the negative battery cable.
Remove the clutch switch. See CLUTCH PEDAL REMOVAL/INSTALLATION .
Inspect continuity between the clutch switch terminals using an ohmmeter.

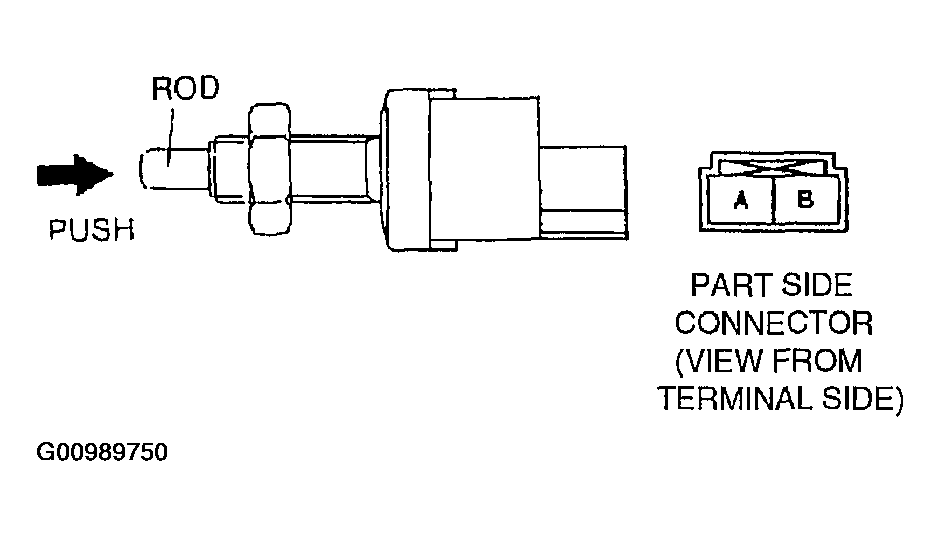

Fig 1: Identifying Clutch Switch [BP, BP With TC] Part Side Connector Terminals & Rod
Courtesy of MAZDA MOTORS CORP.
- If not as specified, replace the clutch switch.
- If clutch switch is okay, but PID value is out of specification, perform the "Circuit Open/Short Inspection". See CIRCUIT OPEN/SHORT INSPECTION .
Specification

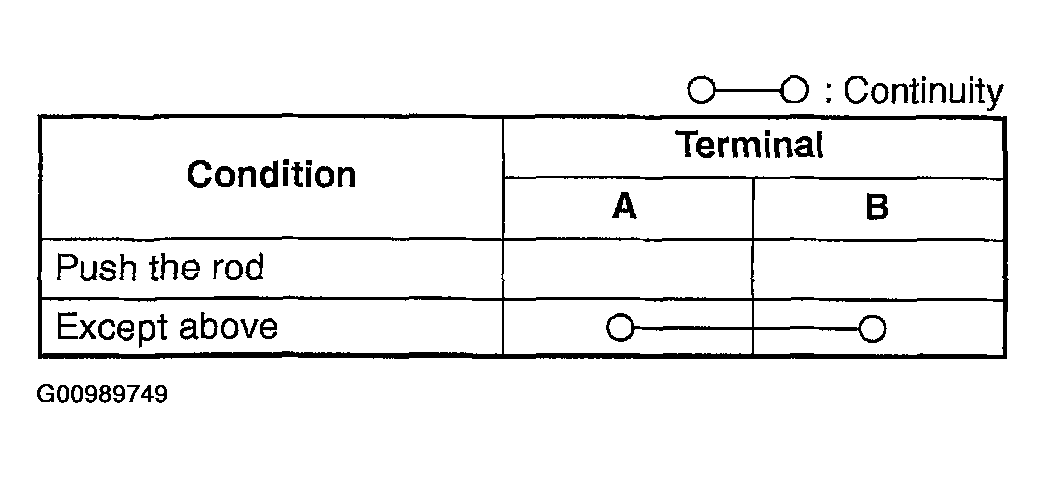

Fig 2: Identifying Clutch Switch [BP, BP With TC] Continuity Specifications
Courtesy of MAZDA MOTORS CORP.
Reconnect the clutch switch connector.
