Control System Diagram [BP With TC]

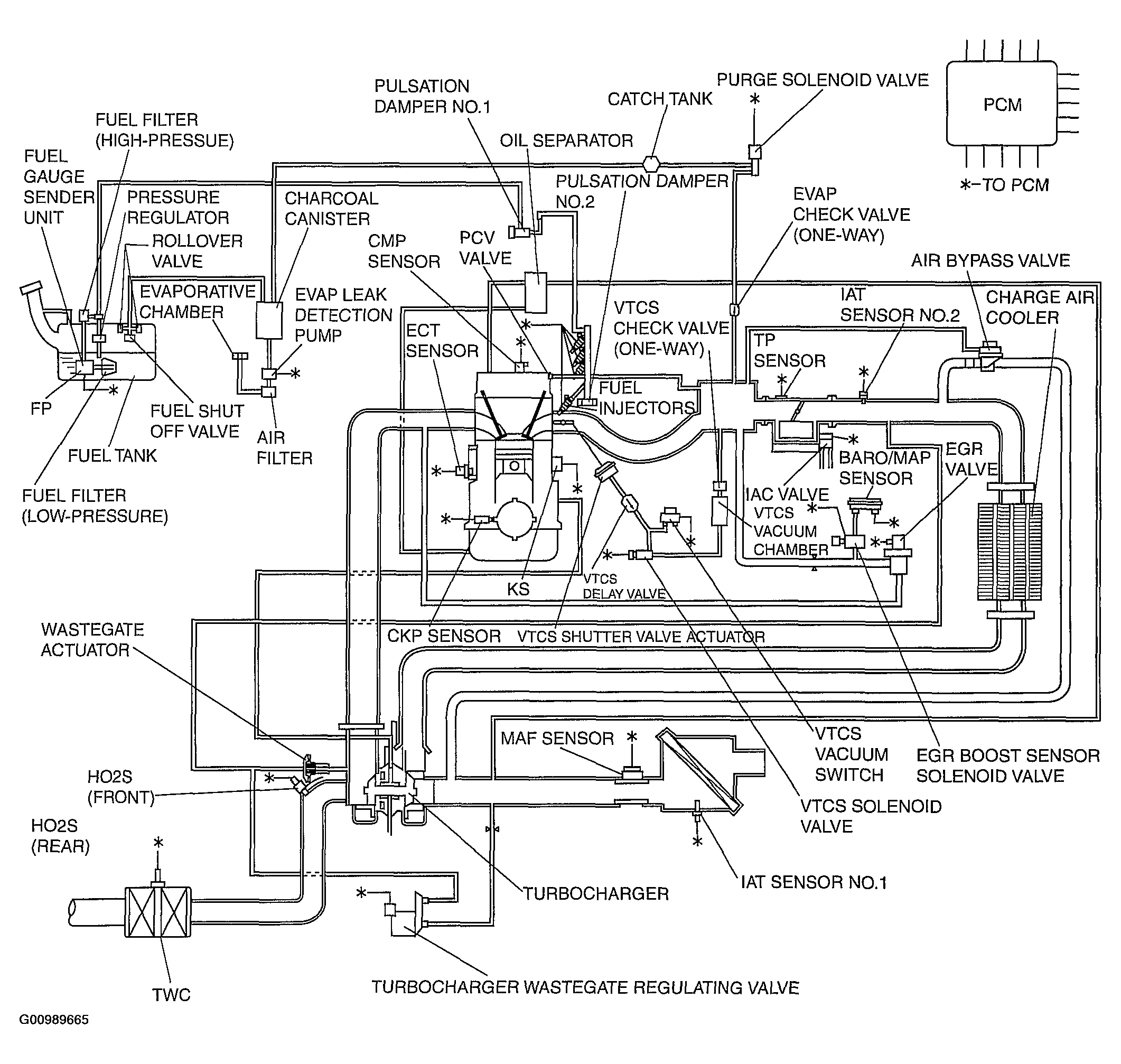

Fig 1: Identifying Control System Diagram [BP With TC]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
