Crankshaft Position (CKP) Sensor Adjustment

Loosen the CKP sensor installation bolt.
While moving the CKP sensor, adjust the air gap between the CKP sensor and the four projections on the plate using a feeler gauge.
Specification
1. 0.5-1.5 mm {0.020-0.059 in}

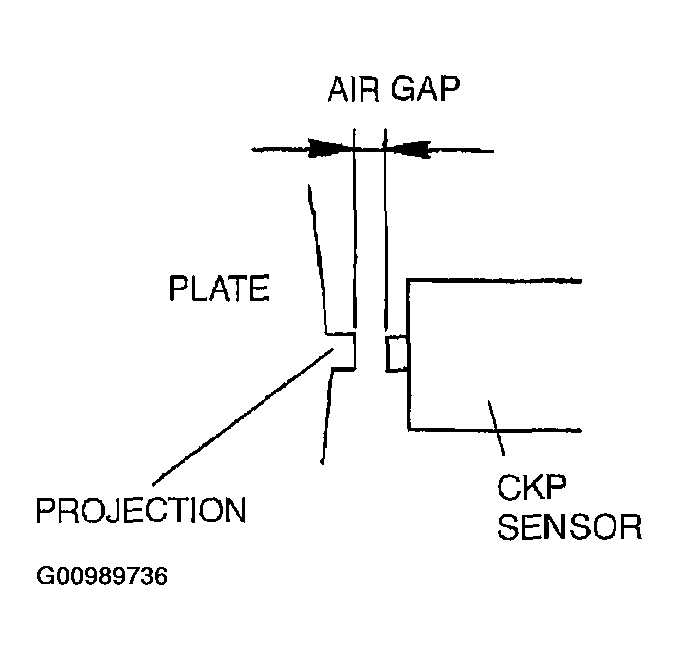

Fig 1: Identifying CKP Sensor Air Gap
Courtesy of MAZDA MOTORS CORP.
Tighten the CKP sensor installation bolt.
- If not adjusted, replace the plate behind the crankshaft pulley or the CKP sensor. See PLATE REMOVAL/INSTALLATION or CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .
Tightening torque
1. 7.9-10.7 N.m {80-110 kgf.cm, 69.5-95.4 in.lbf}
