Inspection Of Continuity

NOTE:

Perform the following test only when directed.

Disconnect the negative battery cable.
Remove the neutral switch.
Inspect for continuity between the neutral switch terminals using an ohmmeter.

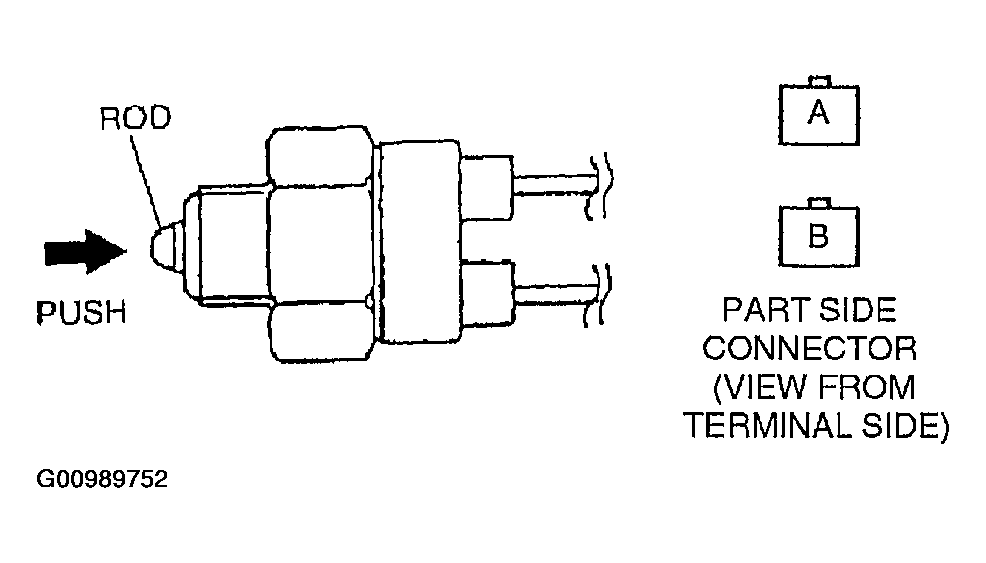

Fig 1: Identifying Neutral Switch [BP, BP With TC] Part Side Connector & Rod
Courtesy of MAZDA MOTORS CORP.
- If not as specified, replace the neutral switch.
- If neutral switch is okay but PID value is out of specification, perform the "Circuit Open/Short Inspection". See CIRCUIT OPEN/SHORT INSPECTION .
Specification

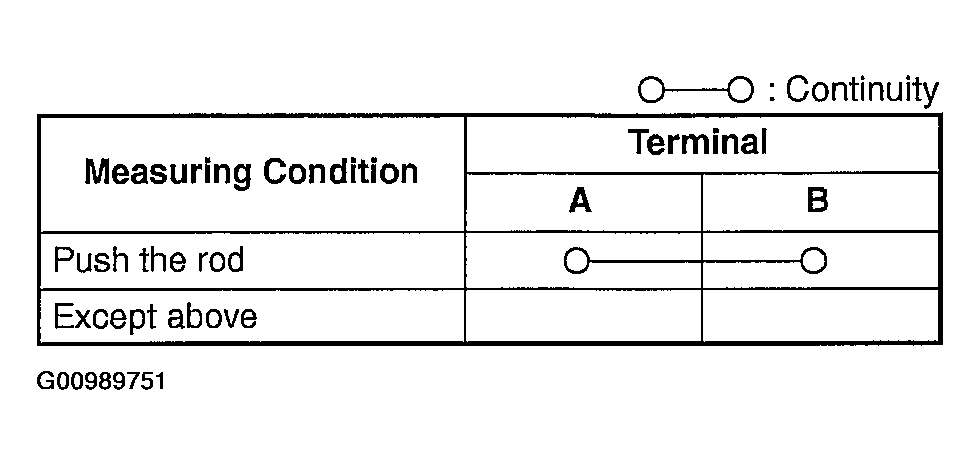

Fig 2: Checking Continuity Of Neutral Switch [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
Reconnect the neutral switch connector.
