Pcm Inspection: BP

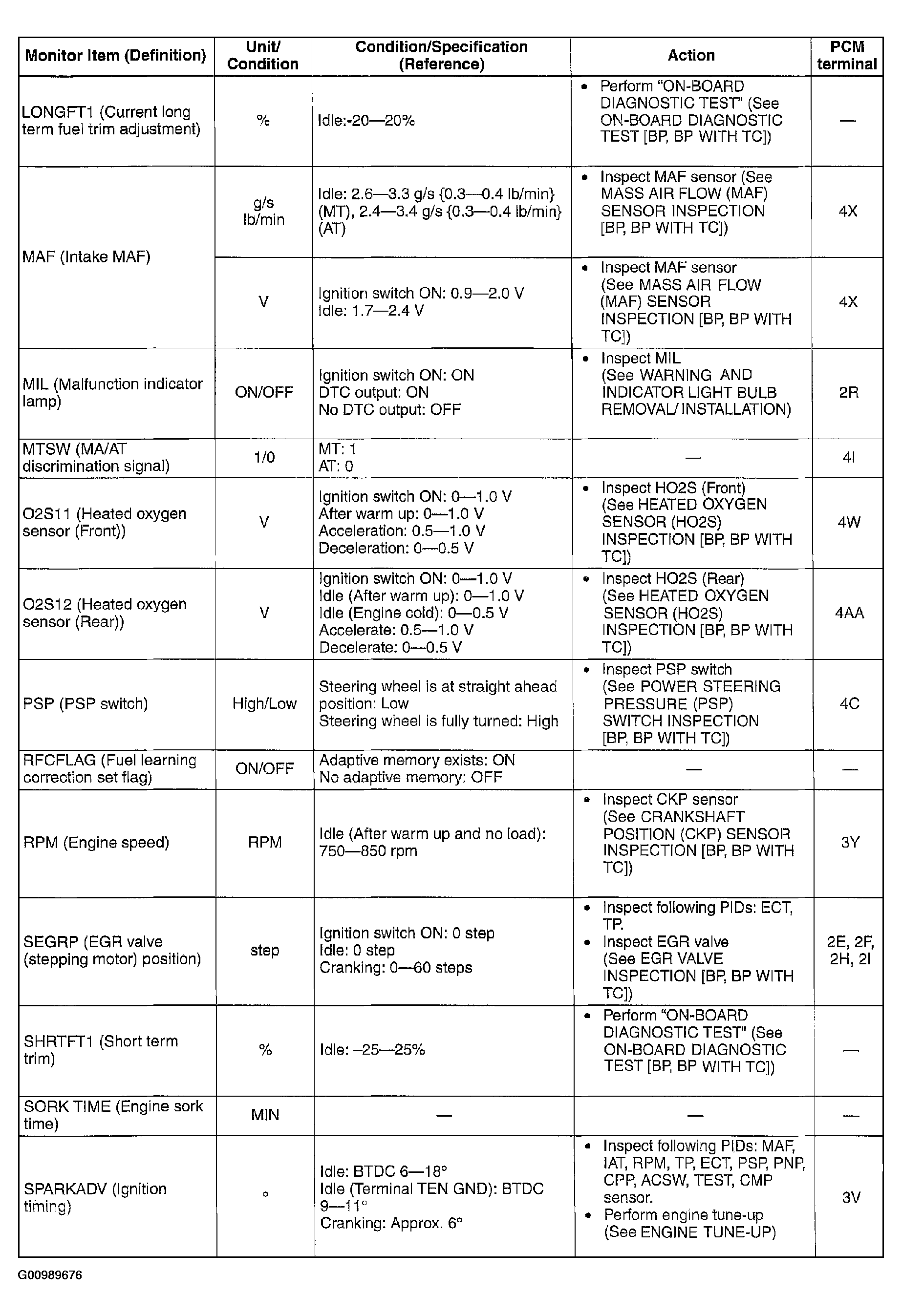

Fig 1: Identifying PCM Inspection [BP] (1 Of 5)
Courtesy of MAZDA MOTORS CORP.

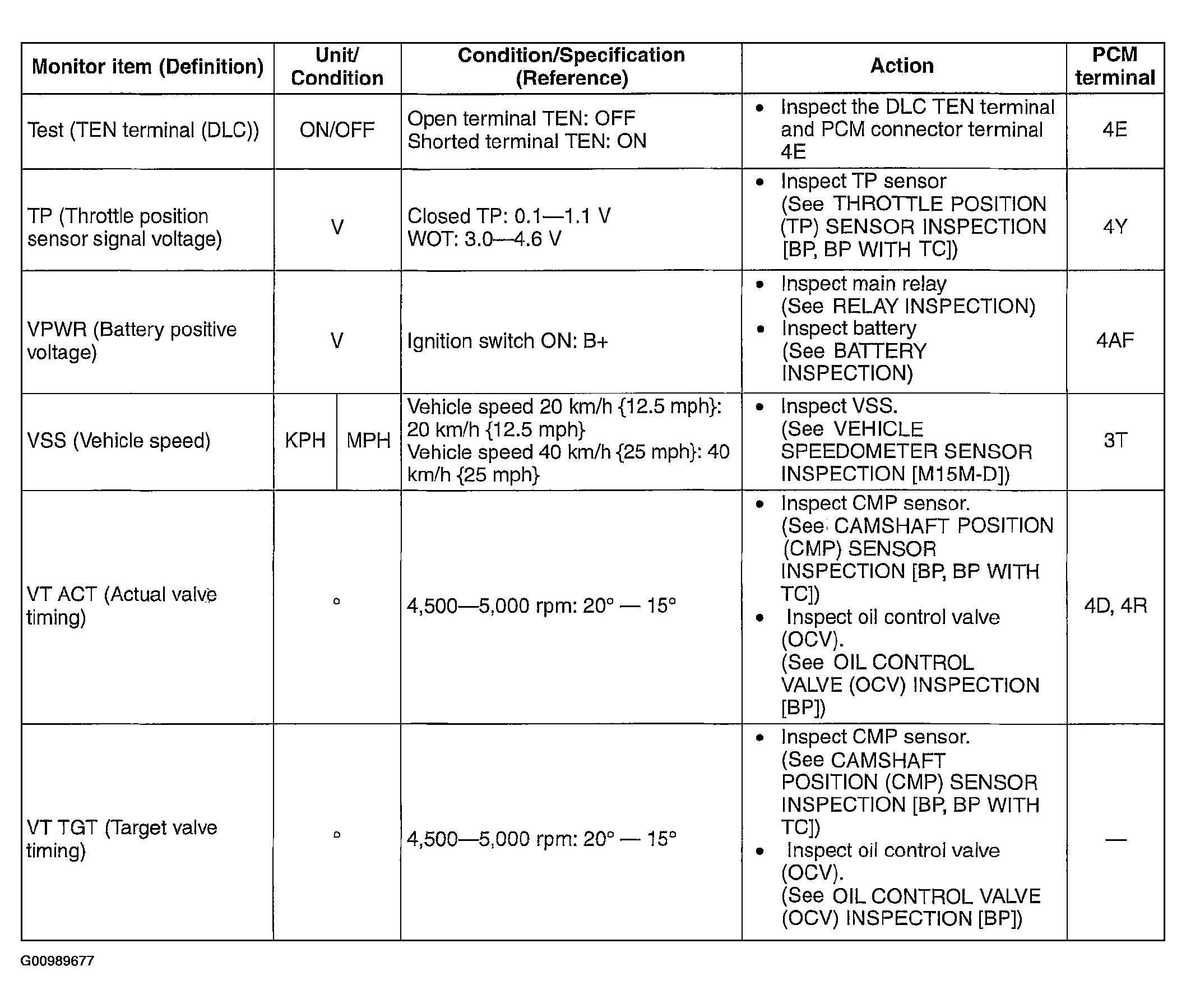

Fig 2: Identifying PCM Inspection [BP] (2 Of 5)
Courtesy of MAZDA MOTORS CORP.

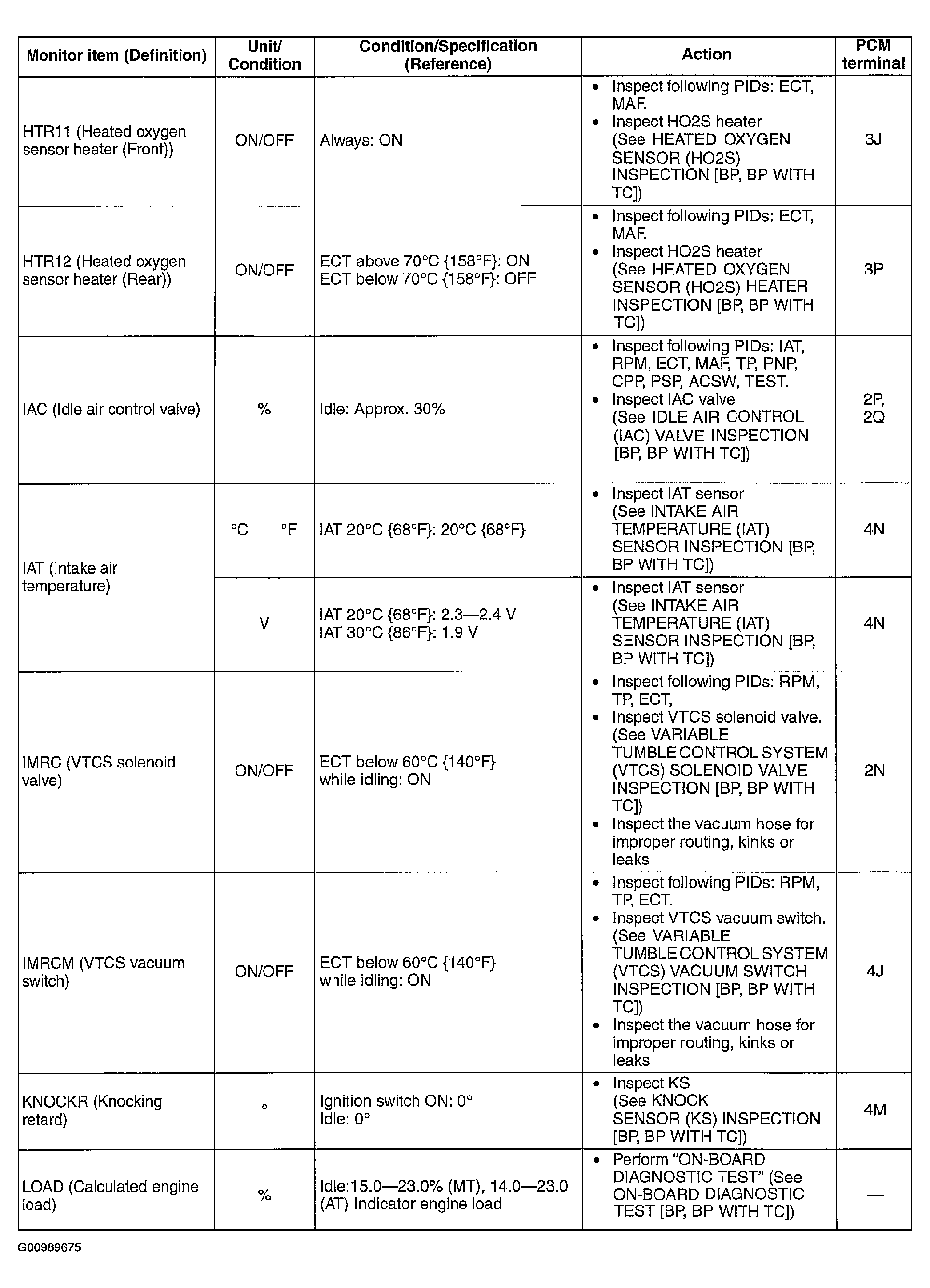

Fig 3: Identifying PCM Inspection [BP] (3 Of 5)
Courtesy of MAZDA MOTORS CORP.

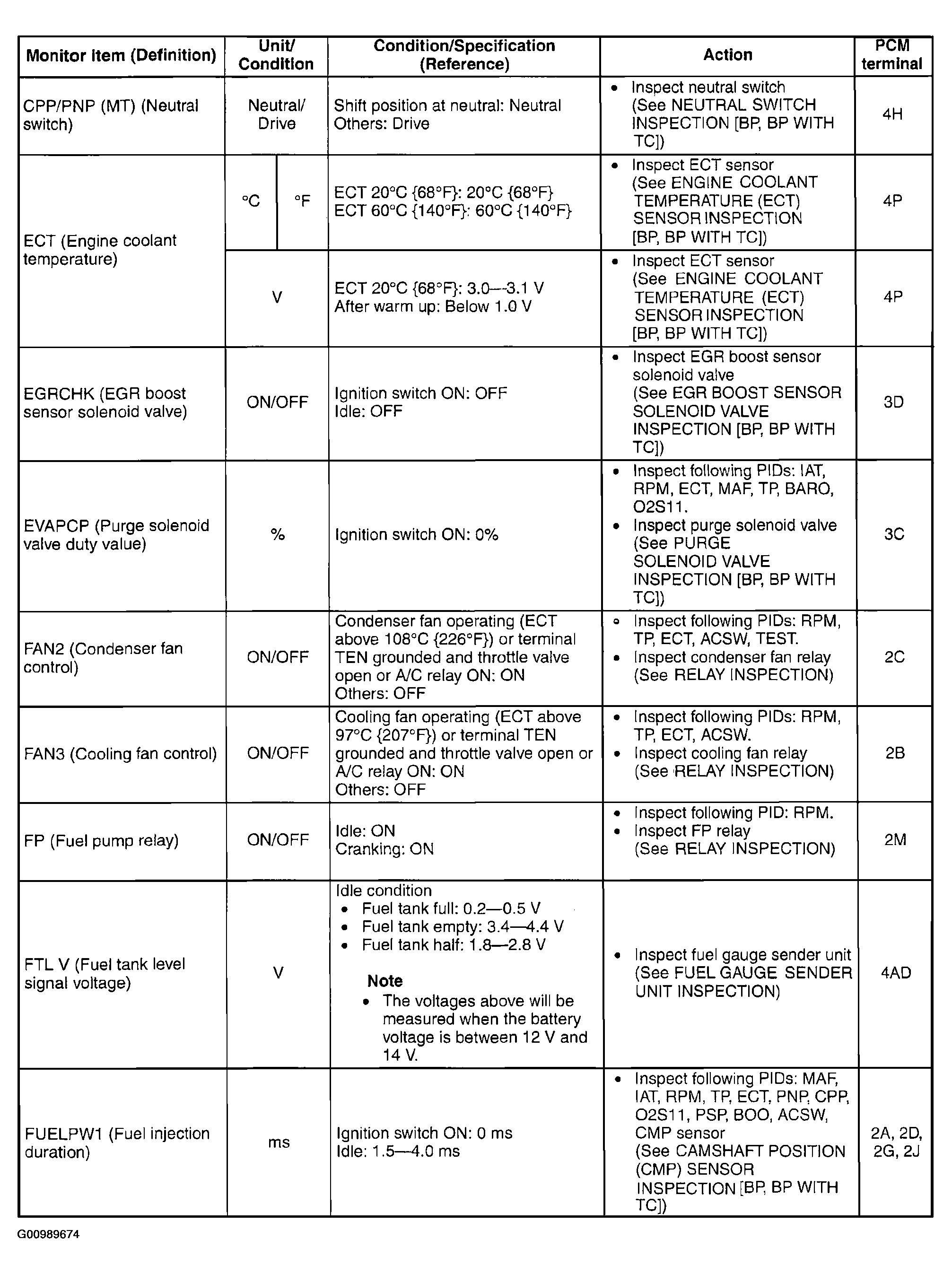

Fig 4: Identifying PCM Inspection [BP] (4 Of 5)
Courtesy of MAZDA MOTORS CORP.

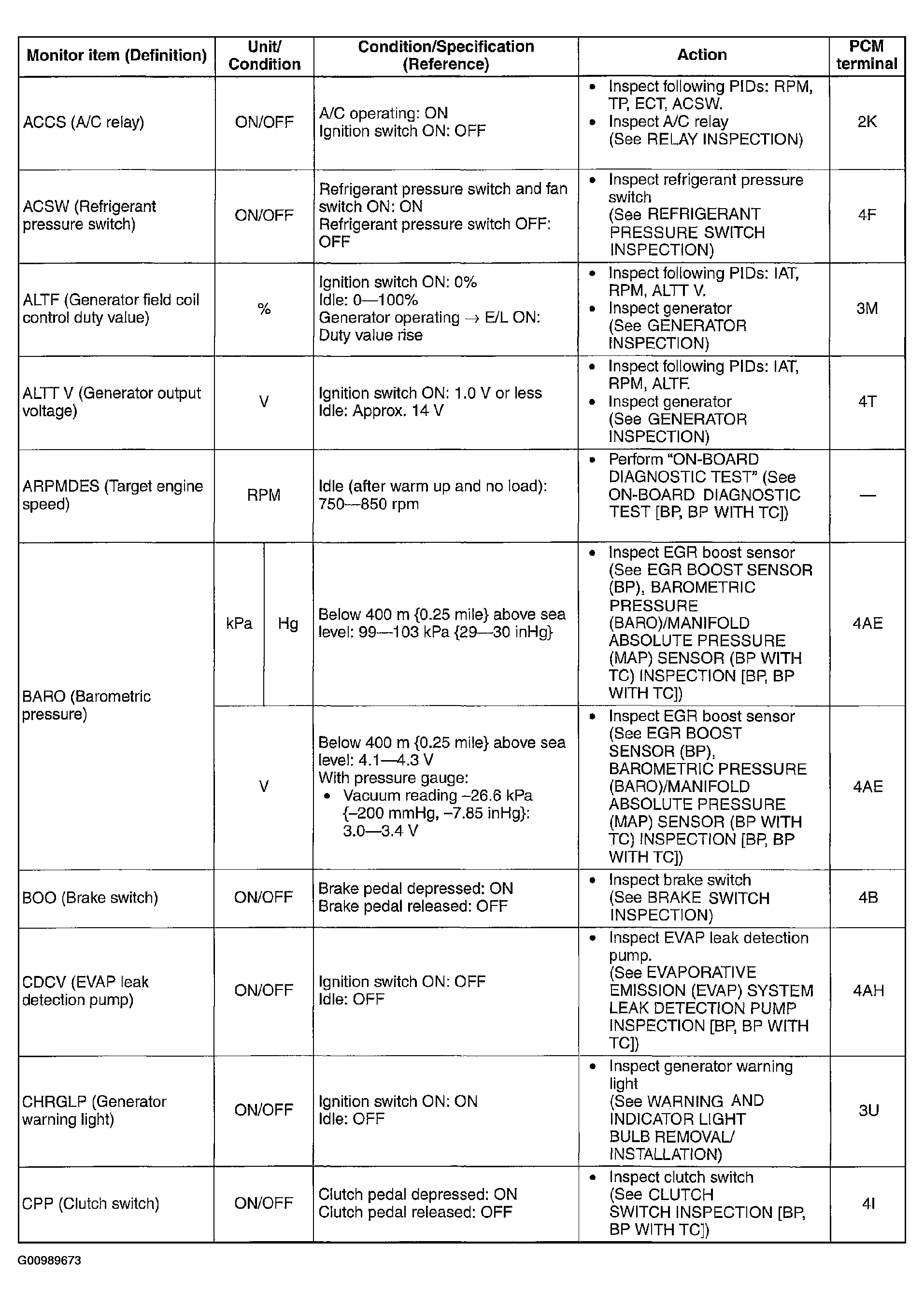

Fig 5: Identifying PCM Inspection [BP] (5 Of 5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
