BP With TC

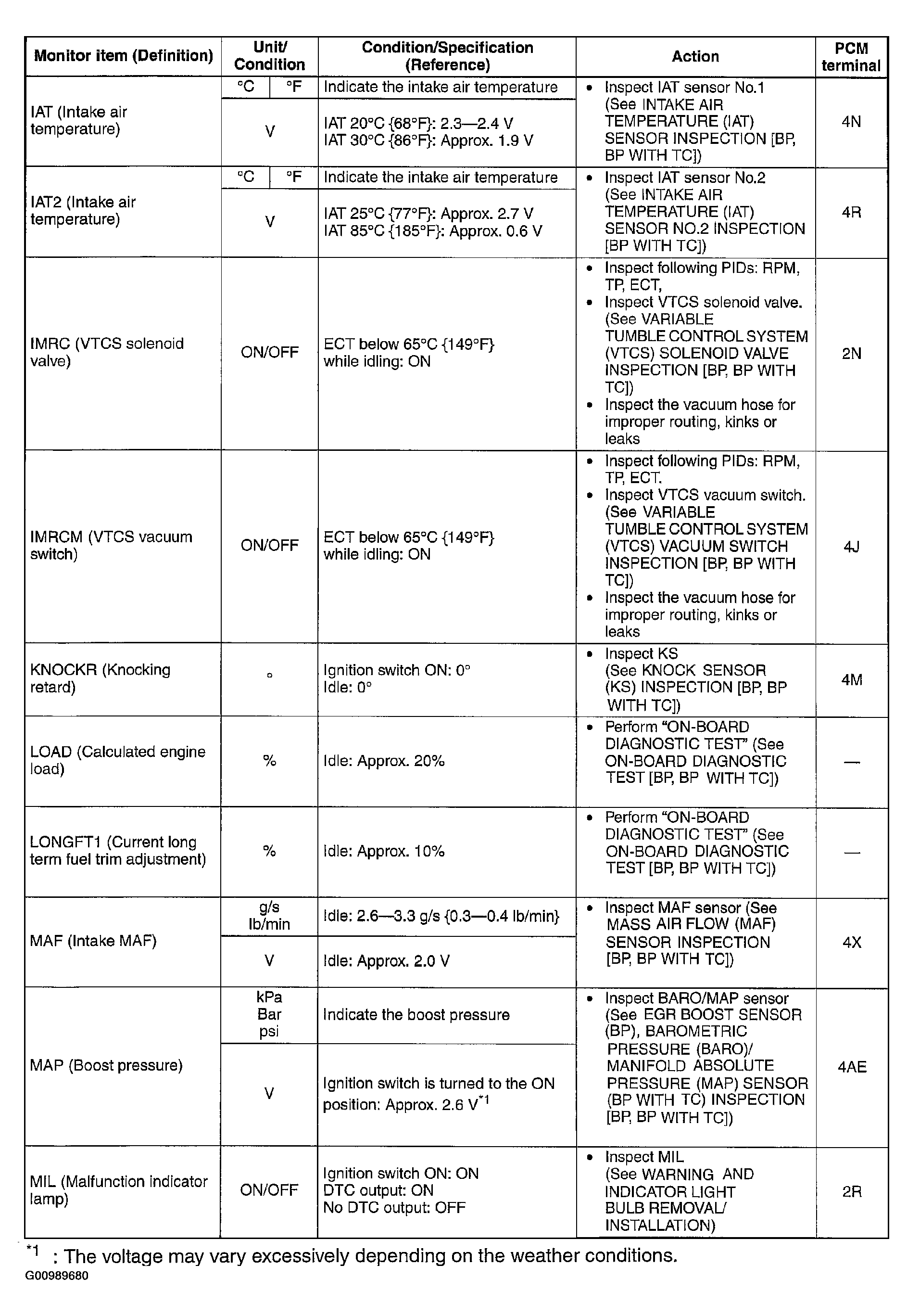

Fig 1: Identifying PCM Inspection [BP With TC] (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

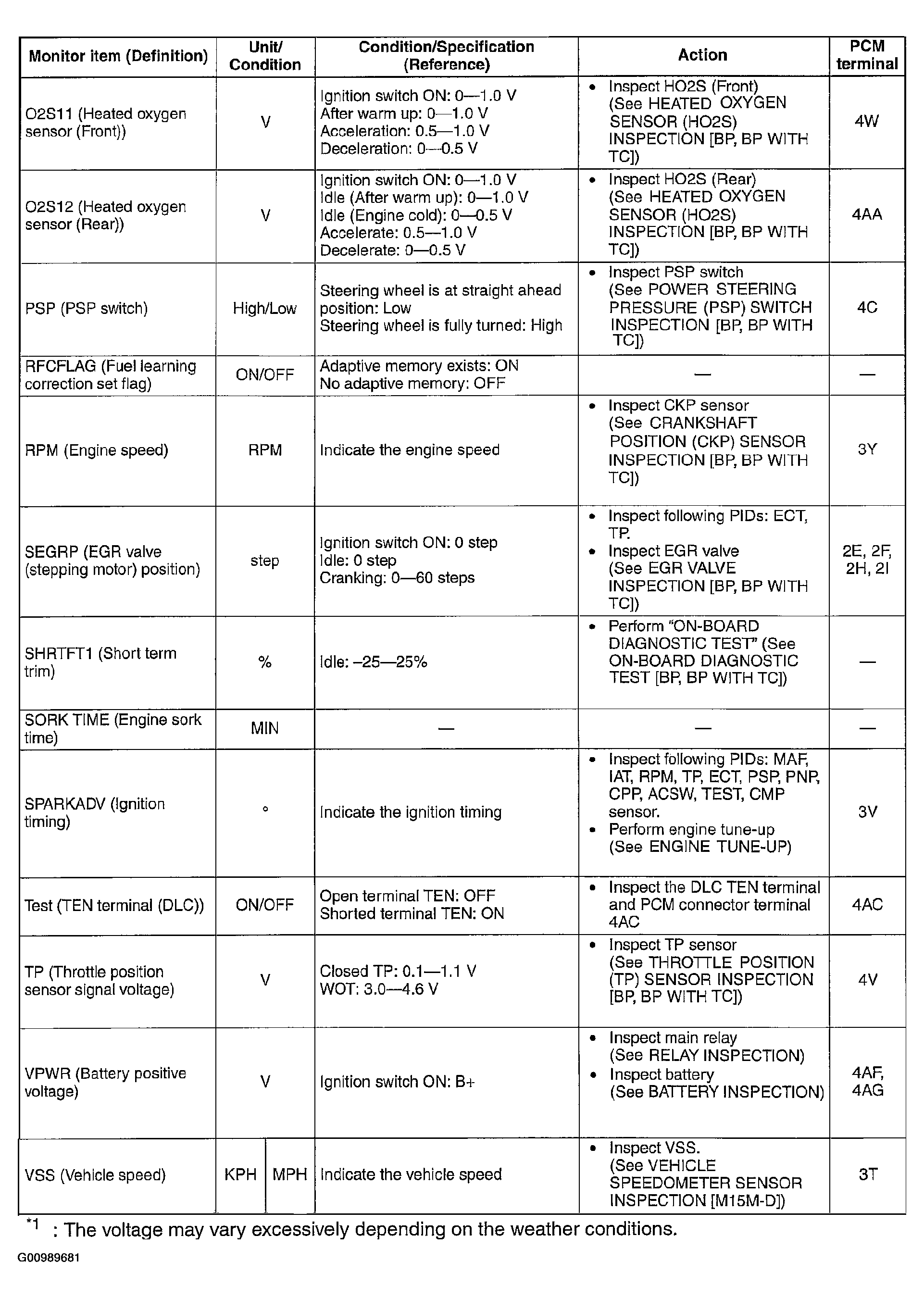

Fig 2: Identifying PCM Inspection [BP With TC] (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

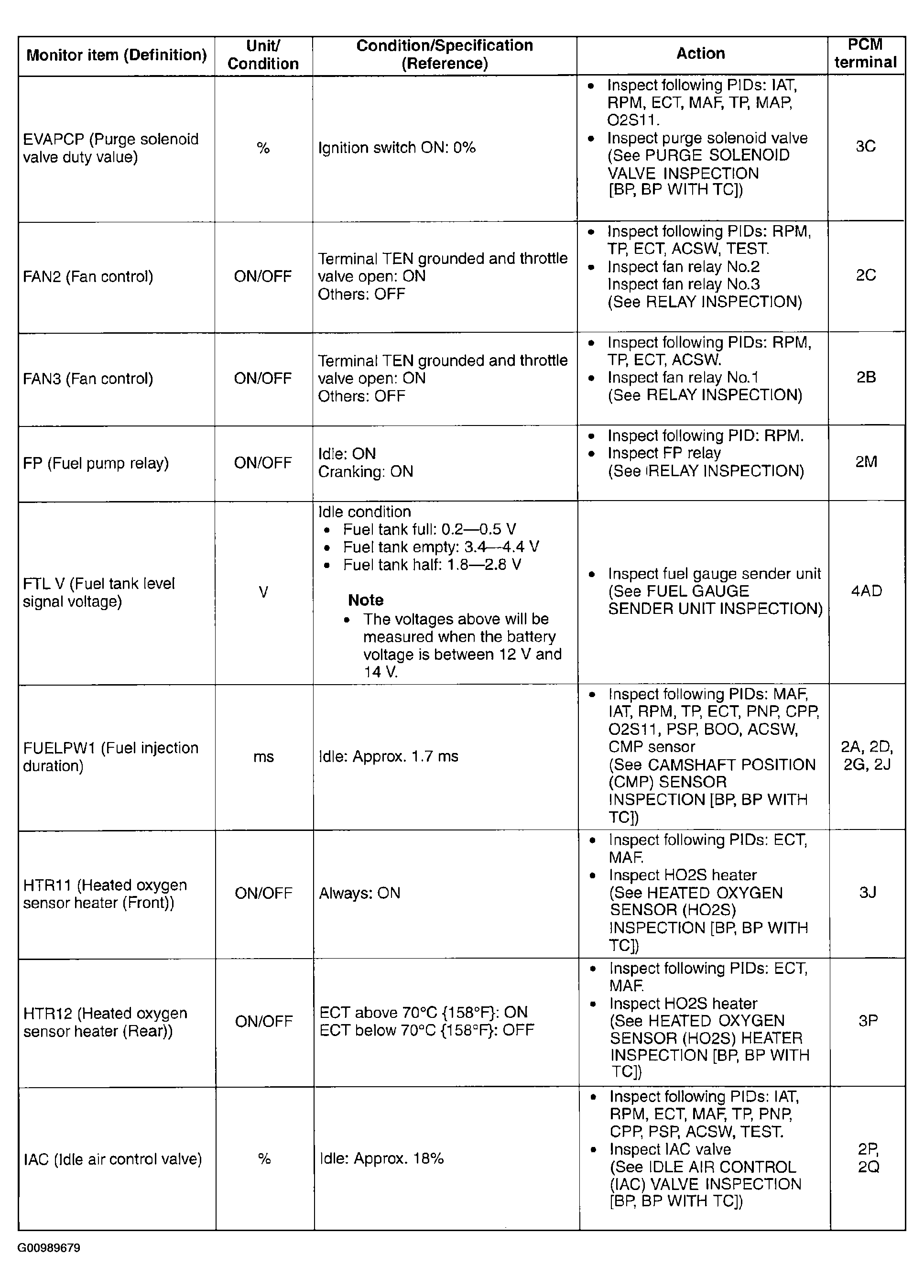

Fig 3: Identifying PCM Inspection [BP With TC] (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

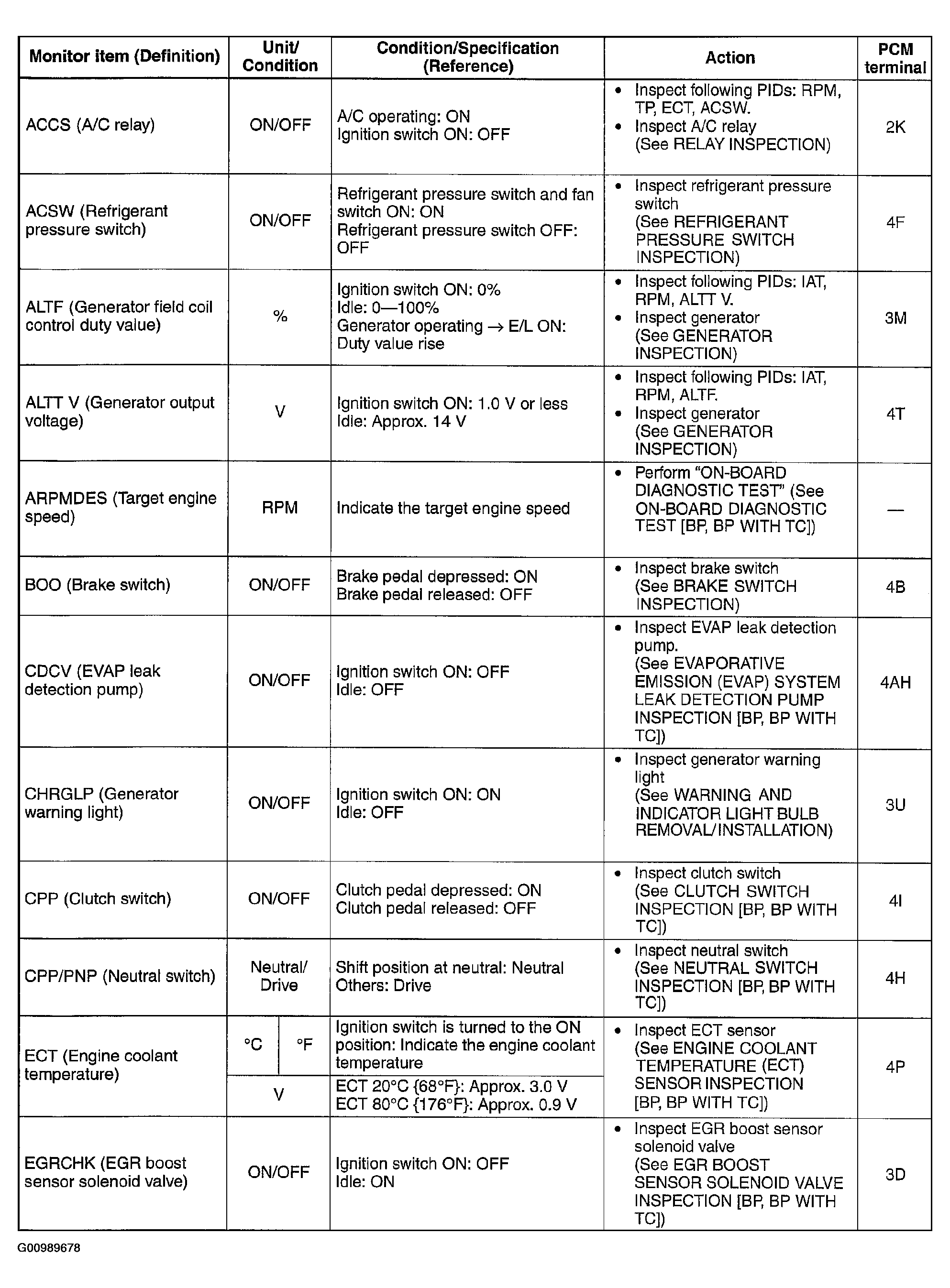

Fig 4: Identifying PCM Inspection [BP With TC] (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
