GND Circuit Inspection

  1. Turn the ignition switch to LOCK.
  2. Disconnect the PCM connectors.
  3. Inspect for continuity between the PCM GND terminals and body GND using an ohmmeter.
    • If not as specified, repair the related harnesses for open circuit.

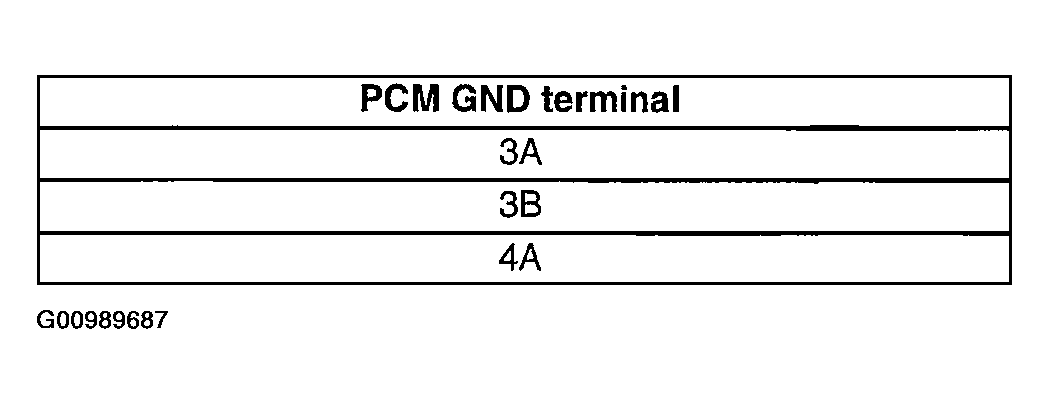

    Fig 1: Identifying PCM Ground Terminals
    G00989687Courtesy of MAZDA MOTORS CORP.
