Engine Speed Signal

PCM terminal: 3O(+) <-> 4A(-)
Oscilloscope setting: 2.0 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition: Idling

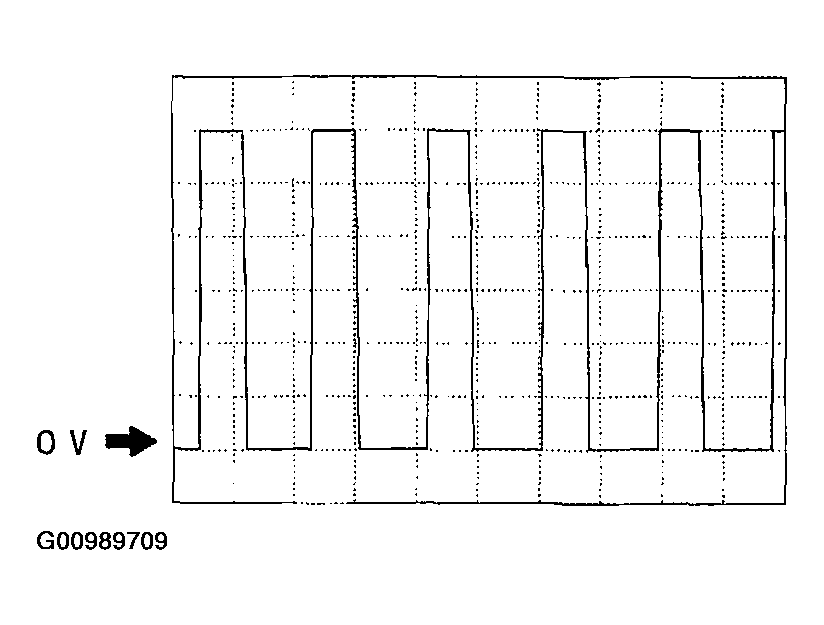

Fig 1: Identifying Fuel Engine Speed Signal
Courtesy of MAZDA MOTORS CORP.
