SGC Signal

PCM terminal: 3V(+) <-> 4A(-)
Oscilloscope setting: 2.0 V/DIV (Y), 20 ms/DIV (X), DC range
Vehicle condition: Idling

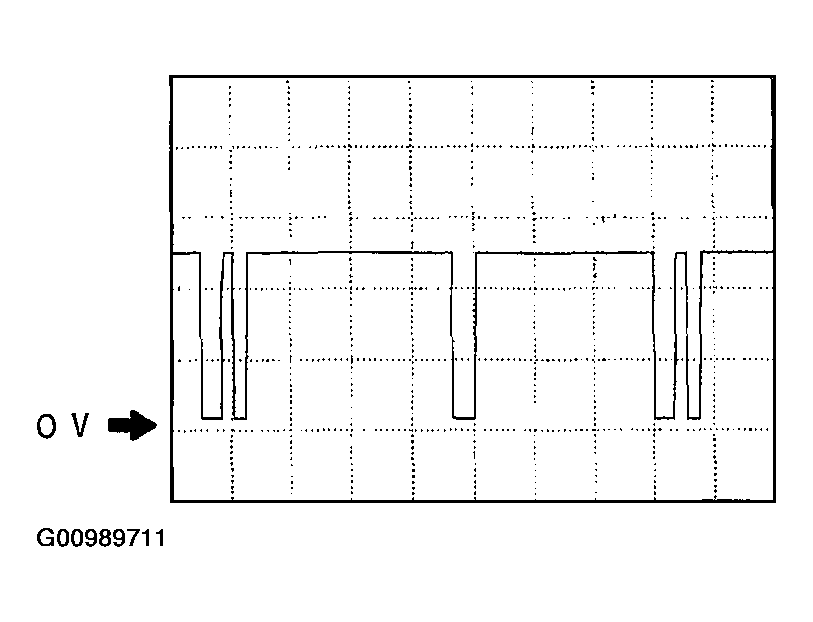

Fig 1: Identifying SGC Signal
Courtesy of MAZDA MOTORS CORP.
