Serial Communication Terminal Inspection

  1. Turn the ignition switch to LOCK.
  2. Disconnect PCM connectors.
  3. Verify there is continuity between PCM connector terminal 3Q and DLC-2 KLN terminal.
    • If not as specified, repair the related harnesses.

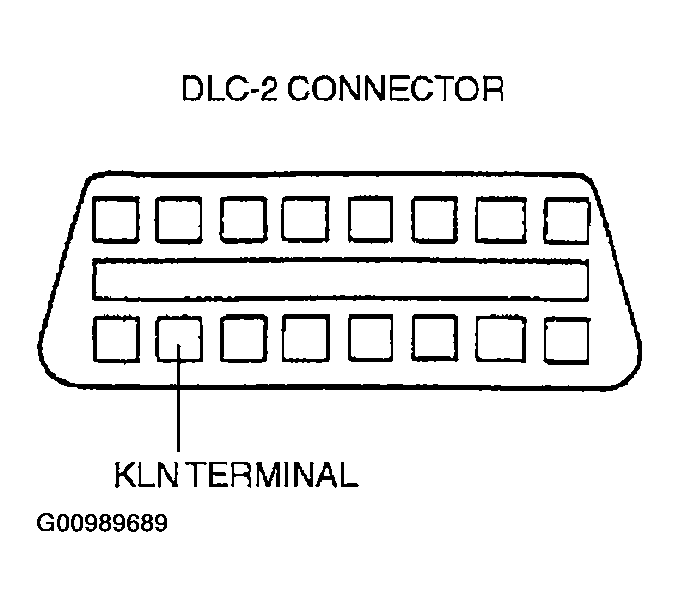

    Fig 1: Identifying KLN Terminal
    G00989689Courtesy of MAZDA MOTORS CORP.
