Plate Removal/Installation

  1. Remove the drive belt.
  2. Remove the crankshaft pulley.
  3. Remove the plate.

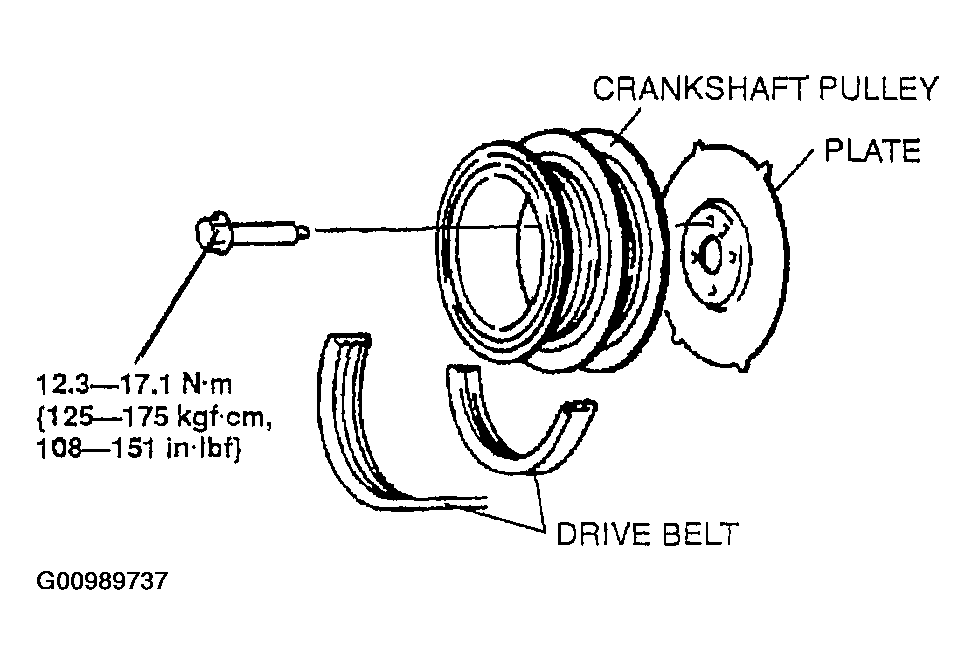

    Fig 1: Removing/Installing Crankshaft pulley & Plate [BP, BP With TC]
    G00989737Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
    NOTE:
