FP Assembly Note

After installing the FP to the bracket, pull the pump down so that it is flush against the bracket and there is no gap.

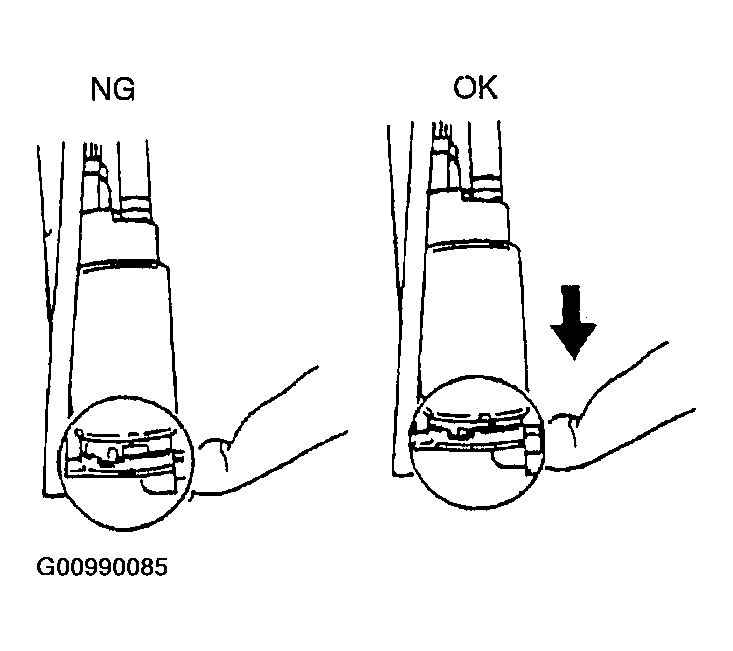

Fig 1: Identifying Proper Way Of Fuel Pump Assembly
Courtesy of MAZDA MOTORS CORP.
