Fuel Pump (FP) Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the illustration.

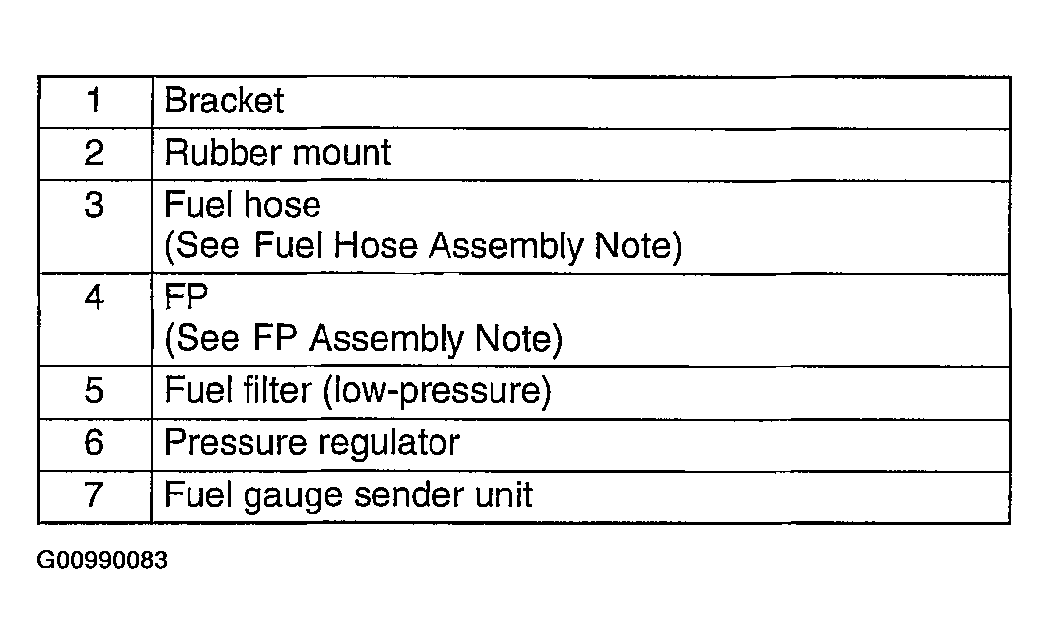

    Fig 1: Removing Order Of Fuel Pump (FP) - [BP, BP With TC]
    G00990083Courtesy of MAZDA MOTORS CORP.

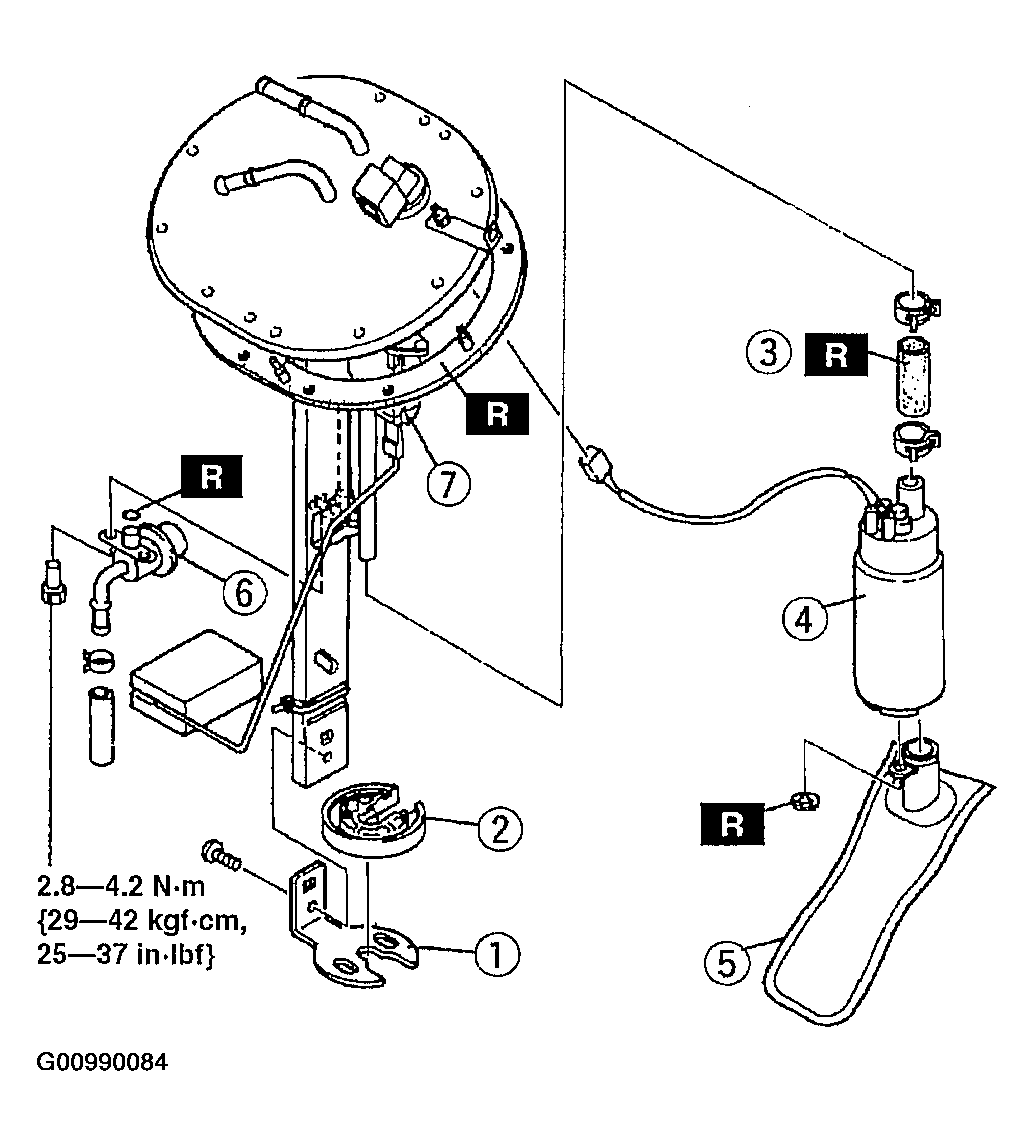

    Fig 2: Disassembling/Assembling Fuel Pump (FP) - [BP, BP With TC]
    G00990084Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
