Fuel Pump (FP) Removal/Installation

WARNING:
  • Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, do not damage the sealing surface of the FP unit when removing or installing.
CAUTION:
  • Disconnecting/connecting the quick release connector without cleaning it may cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting using a cloth or soft brush, and make sure that it is free of foreign material.
  1. Complete the "BEFORE SERVICE PRECAUTION". See BEFORE SERVICE PRECAUTION .
  2. Disconnect the negative battery cable.
  3. Uncover the rear package trim.
  4. Remove the service hole cover.
  5. Remove in the order indicated in the illustration.
    Fig 1: Removing Order Of Fuel Pump (FP) - [BP, BP With TC]
    G00990081Courtesy of MAZDA MOTORS CORP.

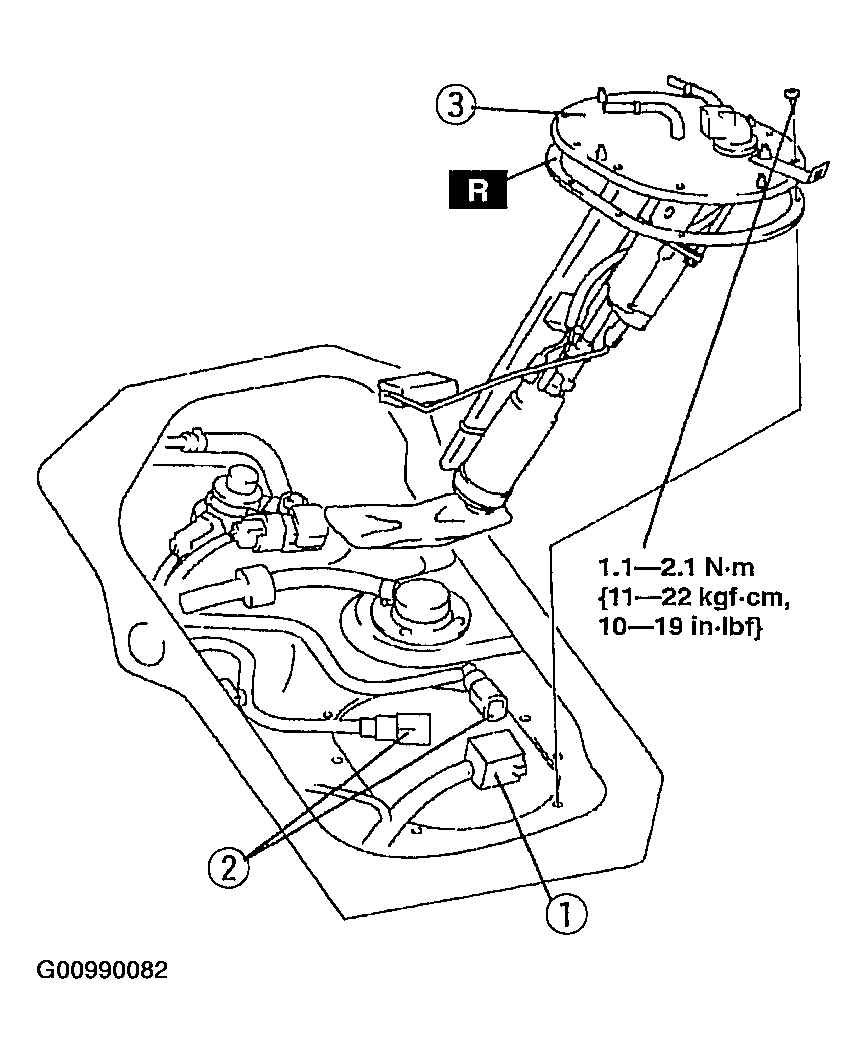

    Fig 2: Removing/Installing Fuel Pump (FP) - [BP, BP With TC]
    G00990082Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. Complete the "AFTER SERVICE PRECAUTION". See AFTER SERVICE PRECAUTION .
