Plastic Fuel Hose Assembly Note

  1. Verify that the inside of the fuel pipe and the quick release connector is free of foreign material and damage.
  2. Clean if necessary, taking care not to damage the sealing surfaces.
  3. Push the quick release connector into the fuel pipe until a click is heard.

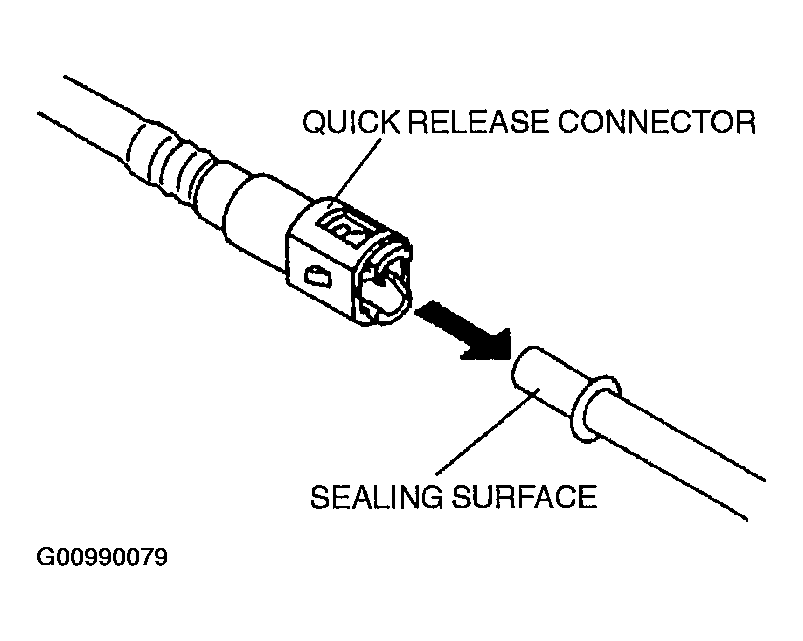

    Fig 1: Pushing Quick Release Connector Into Fuel Pipe
    G00990079Courtesy of MAZDA MOTORS CORP.
  4. Pull the quick release connector by hand and verify that it is installed securely.
