On-Board Diagnostic (Engine Control System BP, BP With TC]
>>
DTC P0032: Ho2S Heater Control Circuit High (Front)
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

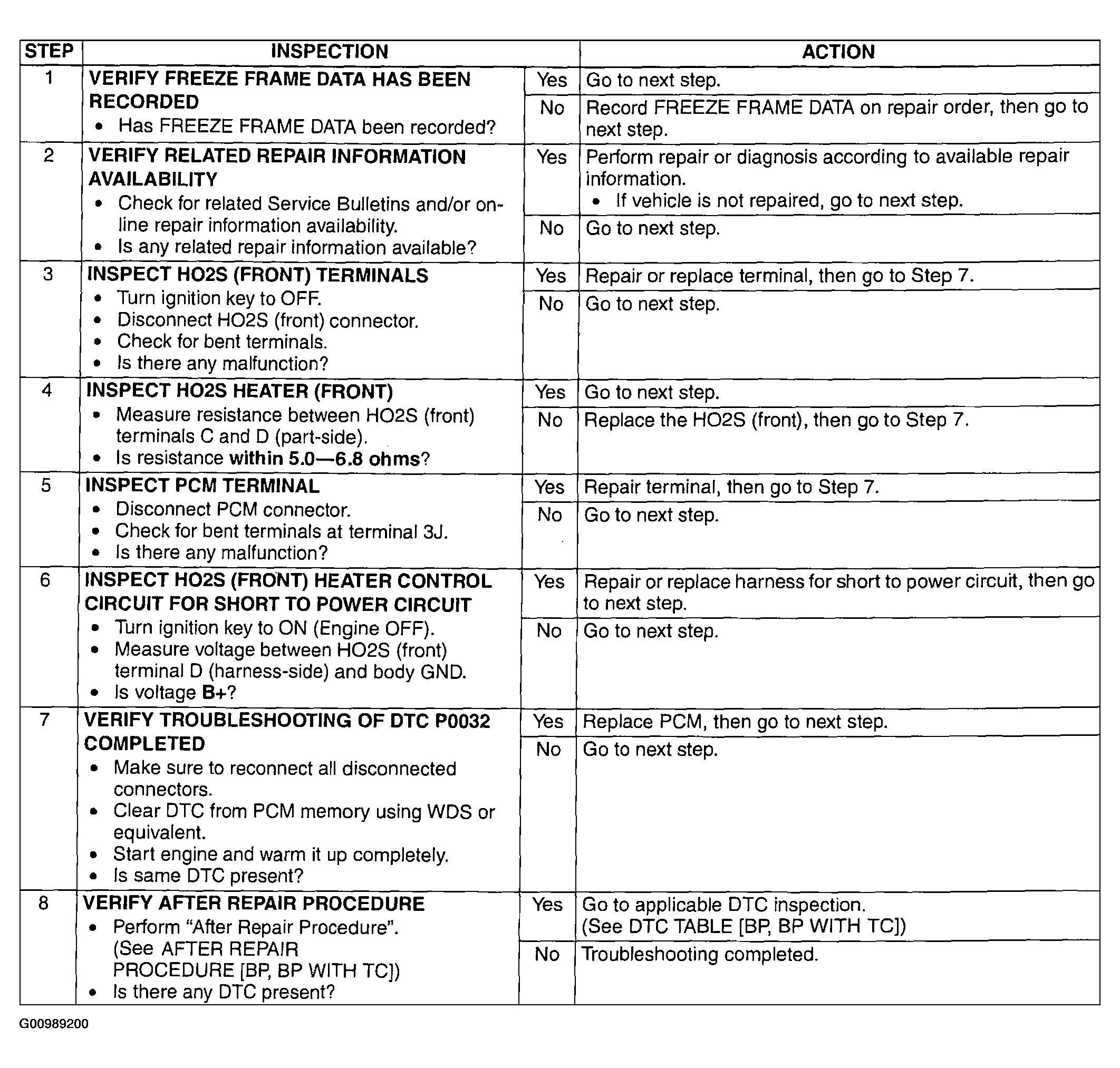

Fig 1: Diagnostic Procedure - DTC P0032 [BP, BP With TC] (1-8)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
