Inspection Of Continuity

NOTE:

Inspect as follows if power steering is inoperative:
- POWER STEERING FLUID INSPECTION. See POWER STEERING FLUID INSPECTION .
Disconnect the PSP switch connector.
Start the engine.
Inspect for continuity between PSP switch terminal and GND using an ohmmeter.
- If not as specified, replace the PSP switch.
- If PSP switch is okay but PID value is out of specification, perform the "Circuit Open/Short Inspection". See CIRCUIT OPEN/SHORT INSPECTION .
Specification

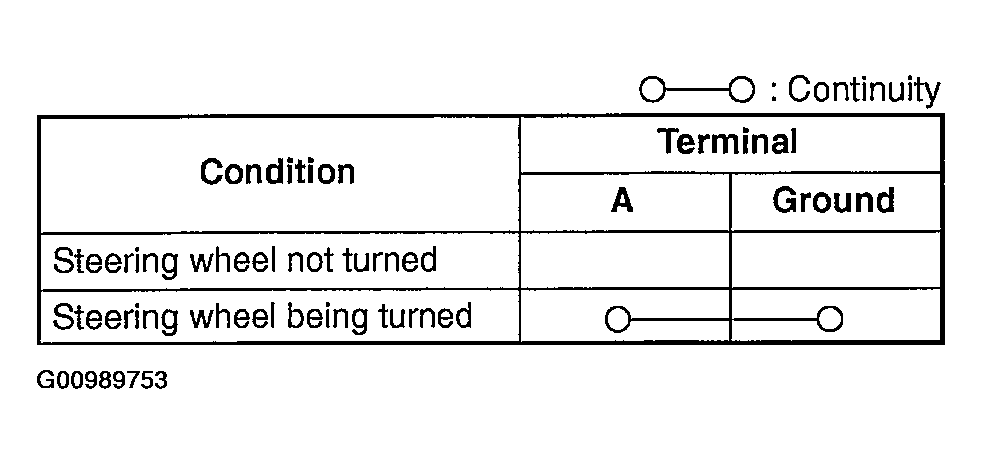

Fig 1: Checking Continuity Of Power Steering Pressure (PSP) Switch [BP, BP With TC]
Courtesy of MAZDA MOTORS CORP.
Reconnect the PSP switch connector.
