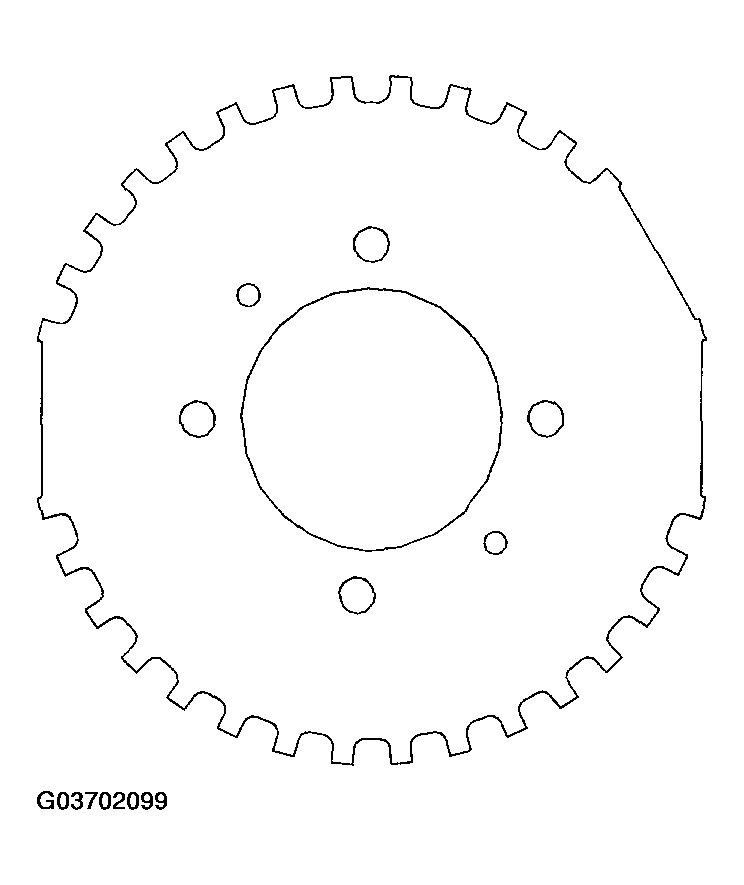

Eccentric Shaft Position Plate Inspection
- Verify that there are no cracks, damage, or corrosion on the projecting parts of the eccentric shaft position plate.
- If there are cracks, damage, or corrosion on the projecting parts, replace the eccentric shaft position plate. (See ECCENTRIC SHAFT POSITION PLATE REMOVAL/INSTALLATION .)
