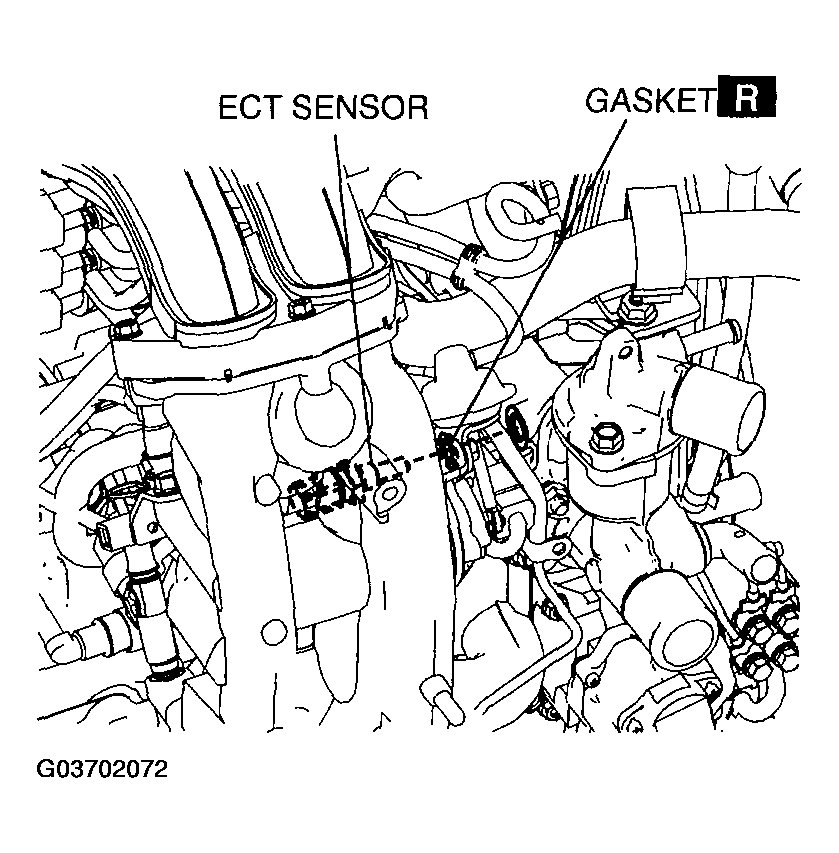

Engine Coolant Temperature (ECT) Sensor Removal/Installation
- Remove the following part for easier access.
- Generator (See GENERATOR REMOVAL/INSTALLATION .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Disconnect the ECT sensor connector.
- Remove the ECT sensor.
- Replace the gasket.
- Install in the reverse order of removal.
ECT sensor tightening torque
- 15.7-23.5 N.m {1.61-2.39 kgf.m, 11.6-17.3 ft.lbf}
