MAF/IAT Sensor Installation Note

  1. Before installation of the MAF/IAT sensor, replace the O-ring.

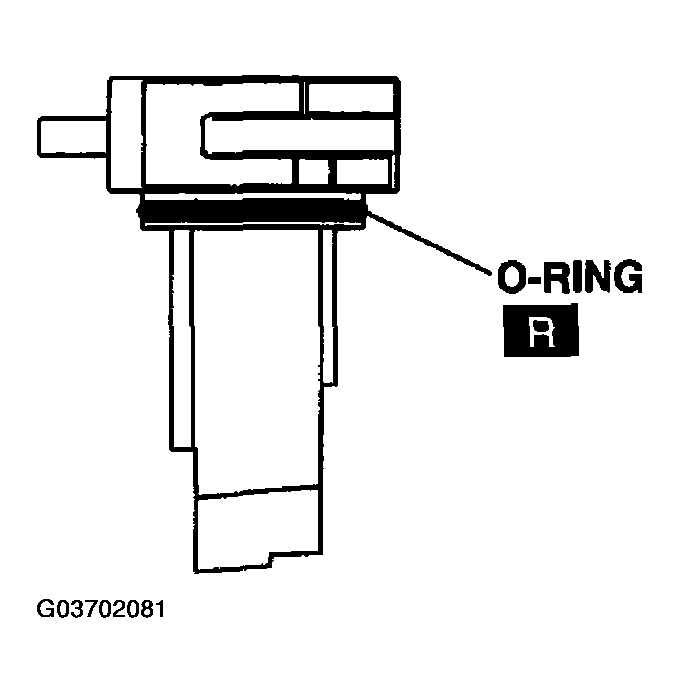

    Fig 1: Installing MAF/IAT Sensor With O-ring
    G03702081Courtesy of MAZDA MOTORS CORP.
