Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connectors.
  2. Disconnect the metering oil pump switch connector.
  3. Inspect the following wiring harnesses for open or short circuit. (Continuity inspection)

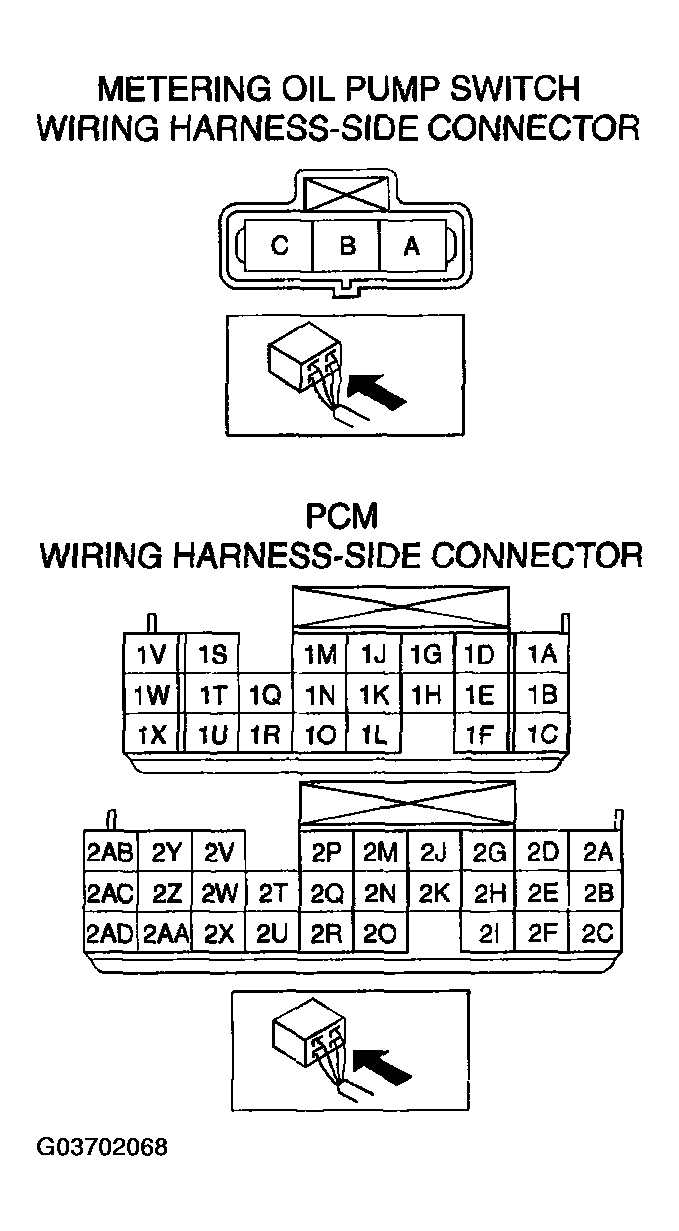

    Fig 1: Identifying Metering Oil Pump Switch Connector
    G03702068Courtesy of MAZDA MOTORS CORP.
