Continuity Inspection

  1. Remove the neutral switch.
  2. Verify that the continuity between neutral switch terminals 1A and 2A is as indicated in the table.

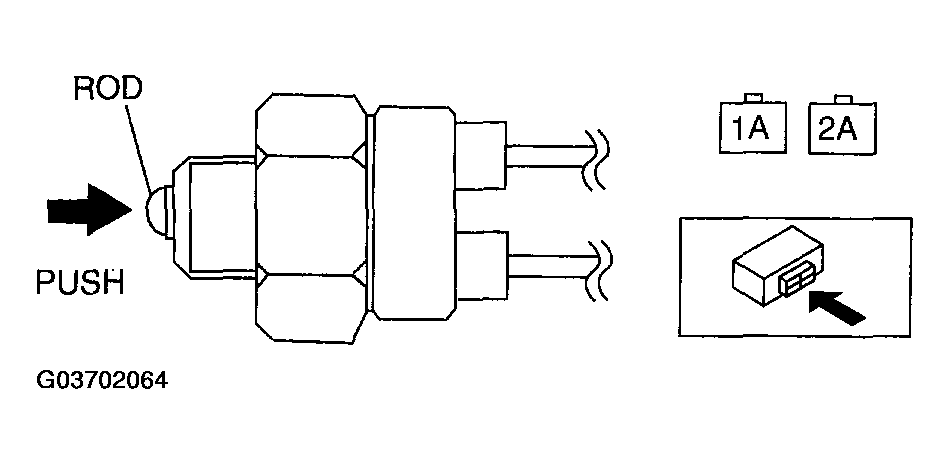

    Fig 1: Identifying Neutral Switch
    G03702064Courtesy of MAZDA MOTORS CORP.
    NEUTRAL SWITCH SPECIFICATION

    Measurement condition Continuity
    Push the rod. No continuity
    Except above Continuity detected
