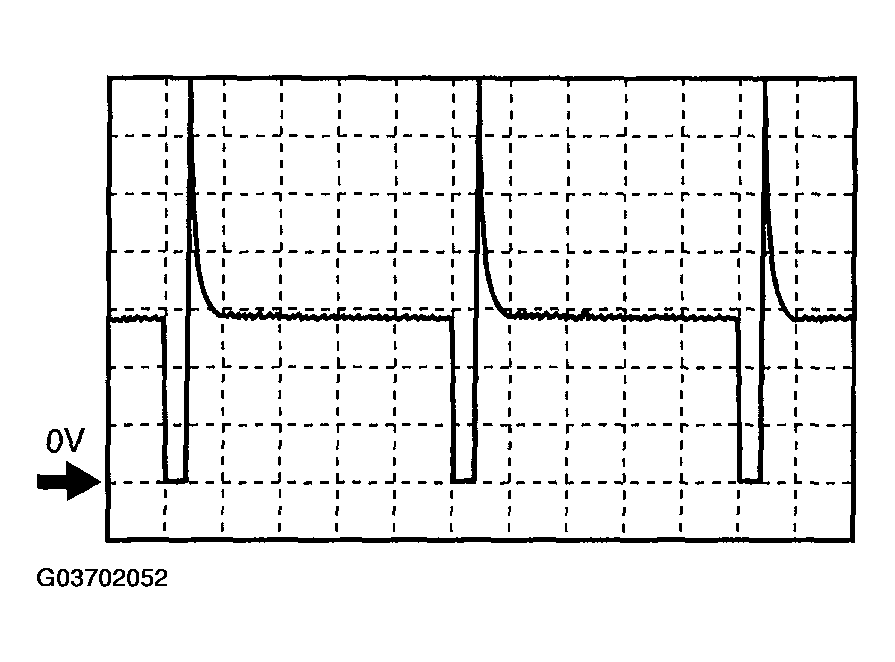

Purge control
- Terminal connected:2P (+)-Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 20 ms/DIV (X), DC range
- Measurement condition: Idling after warm-up (no load)NOTE:
- Purge control might not be activated depending on the engine conditions.
