Rear Heated Oxygen Sensor (Ho2S) Removal/Installation: Notes

  1. Remove the rear HO2S connector.
  2. Remove in the order indicated in the table.

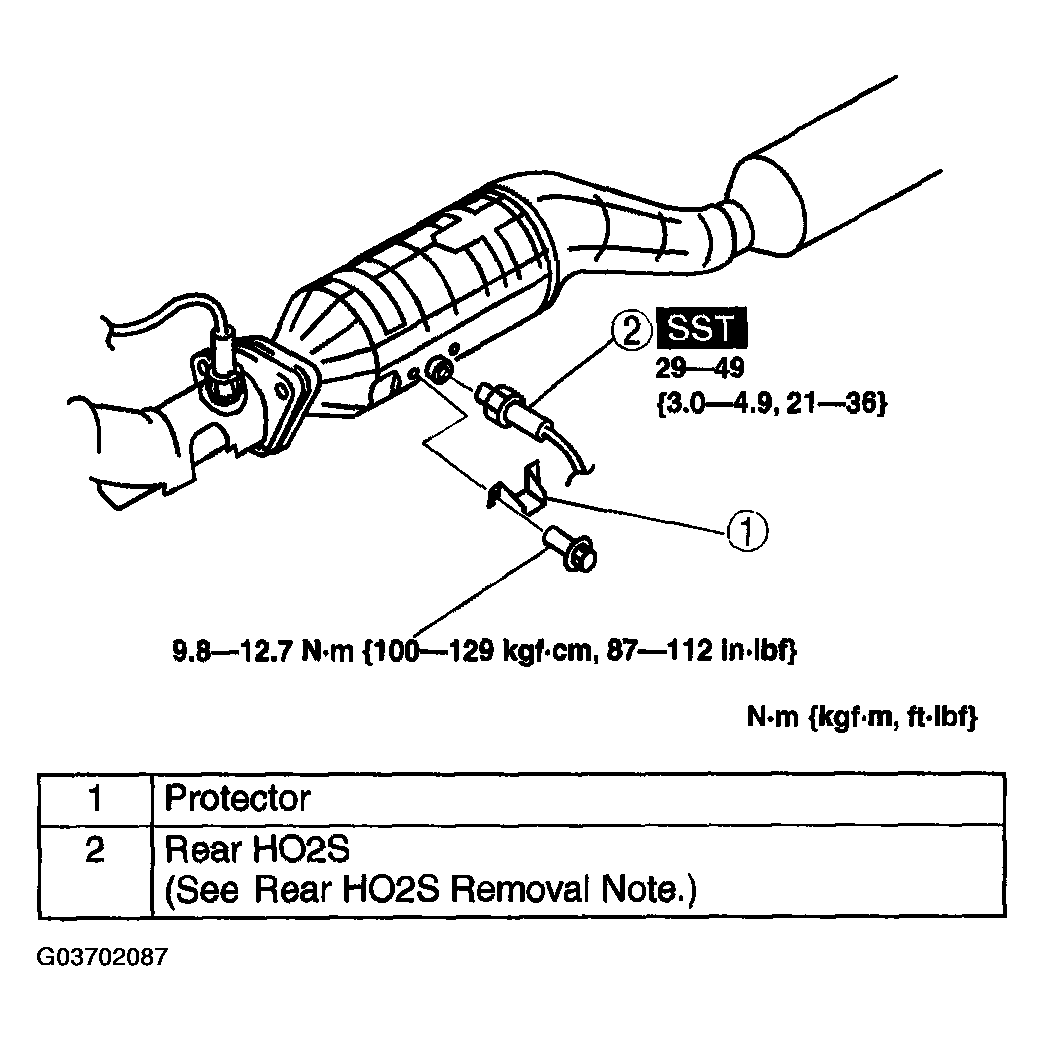

    Fig 1: Rear Heated Oxygen Sensor With Torque Specifications
    G03702087Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
