Secondary Shutter Valve (SSV) Switch Removal/Installation

  1. Disconnect the SSV switch connector.
  2. Remove the SSV installation screws and remove the SSV switch.
  3. Install in the reverse order of removal.

    SSV switch tightening torque

    1. 1.3-1.9 N.m {14-19 kgf.cm, 12-16 in.lbf}

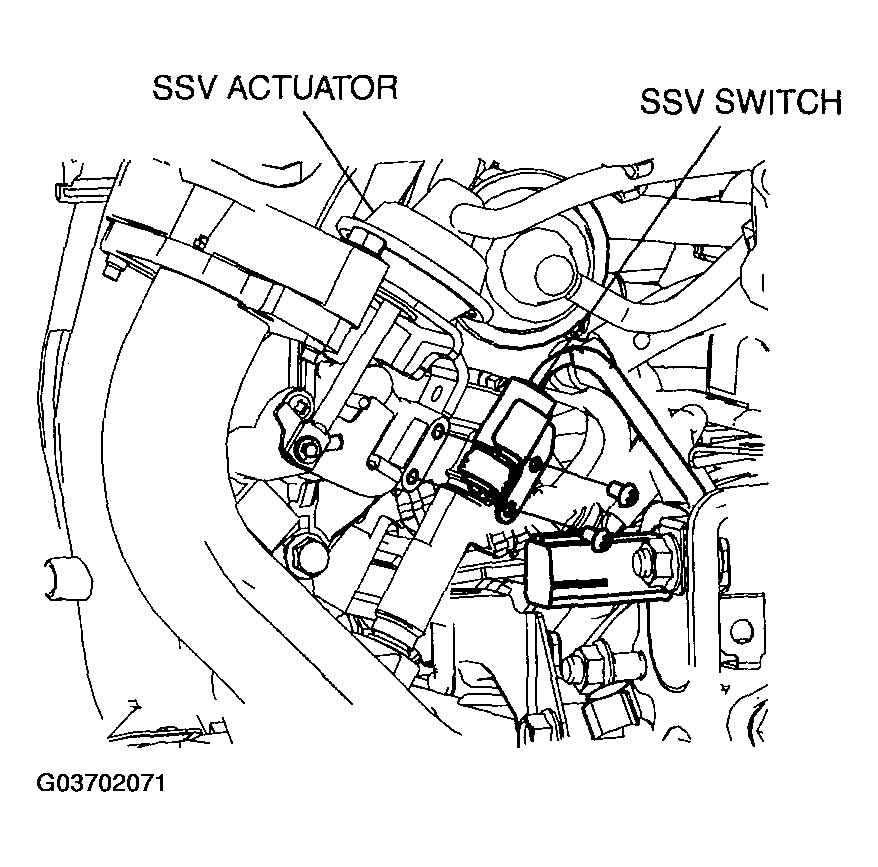

    Fig 1: Identifying Secondary Shutter Valve (SSV) Switch
    G03702071Courtesy of MAZDA MOTORS CORP.
