Fuel Pump Resistor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the secondary air injection (AIR) pump. SECONDARY AIR INJECTION (AIR) PUMP REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure. See Fig 1.
  4. Install in the reverse order of removal.

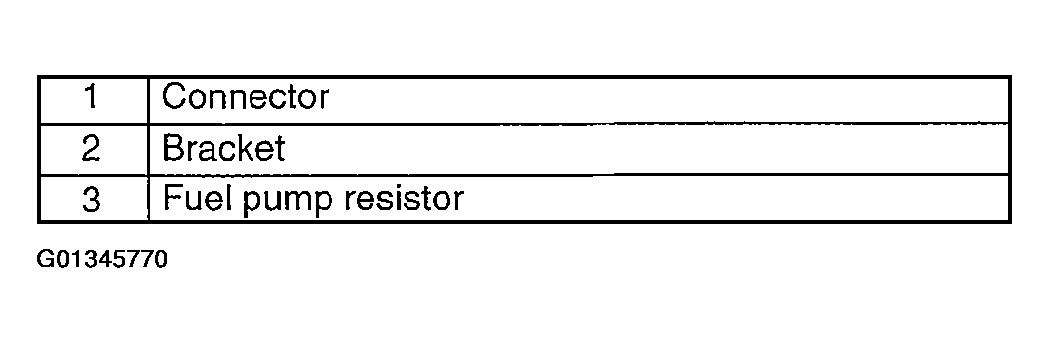

    Fig 1: Removal Order Of Fuel Pump Resistor
    G01345770Courtesy of MAZDA MOTORS CORP.

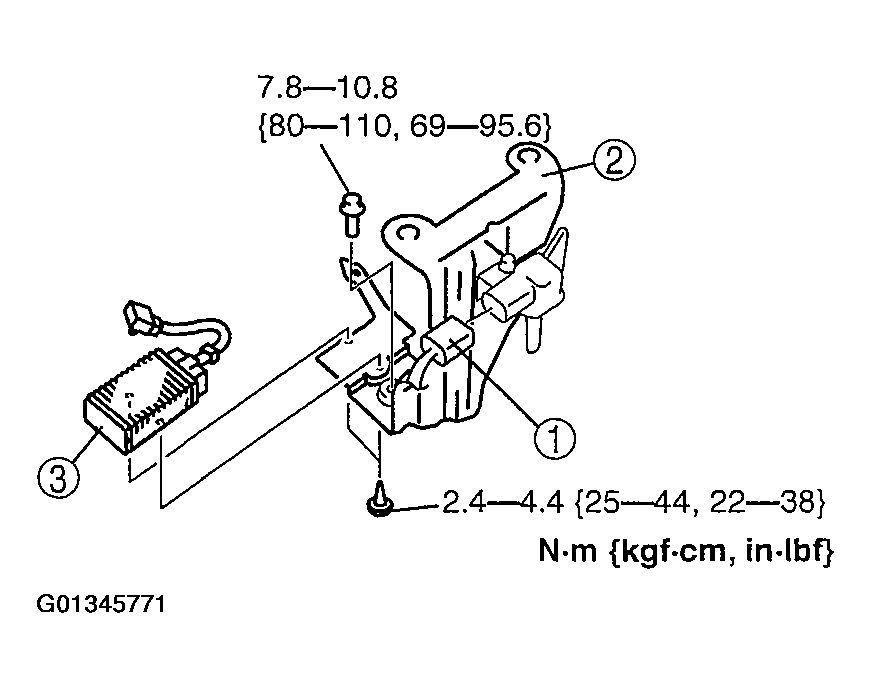

    Fig 2: Removing/Installing Fuel Pump Resistor
    G01345771Courtesy of MAZDA MOTORS CORP.
