Engine Speed

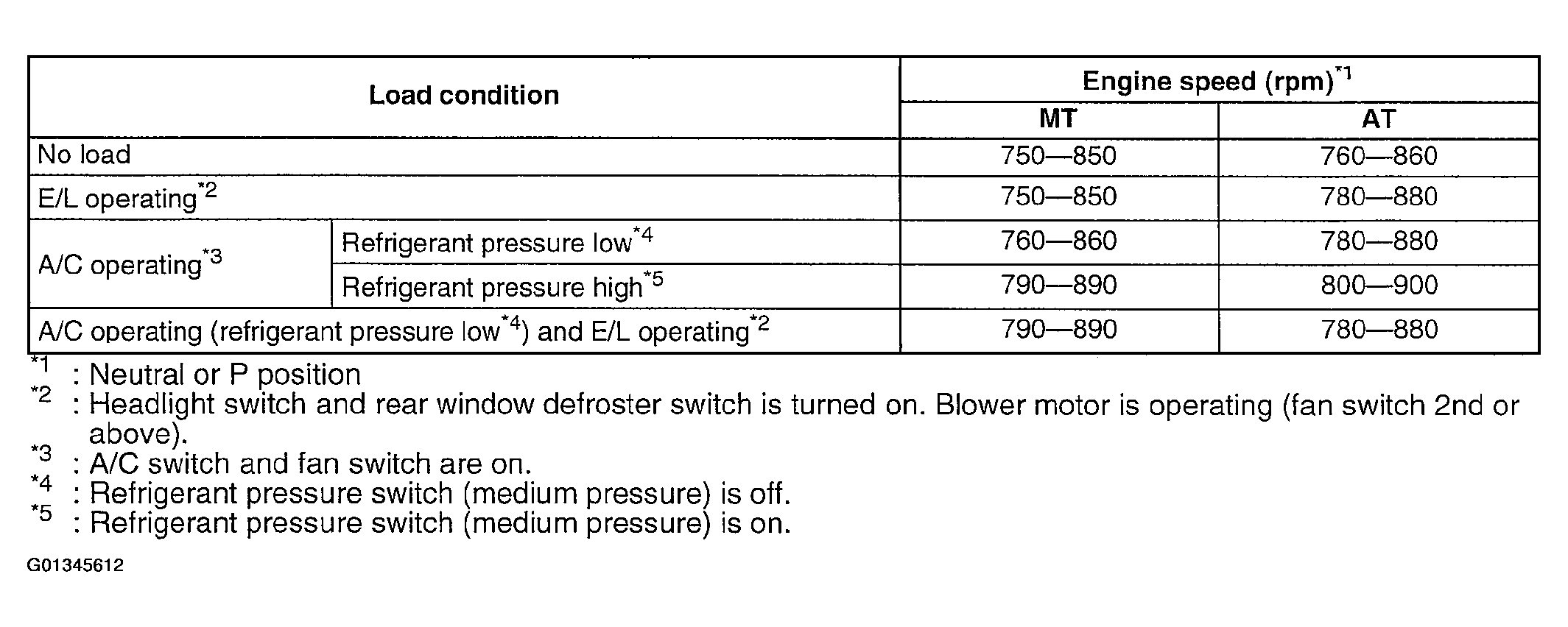

Fig 1: Checking Load At Various Engine Speeds
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
